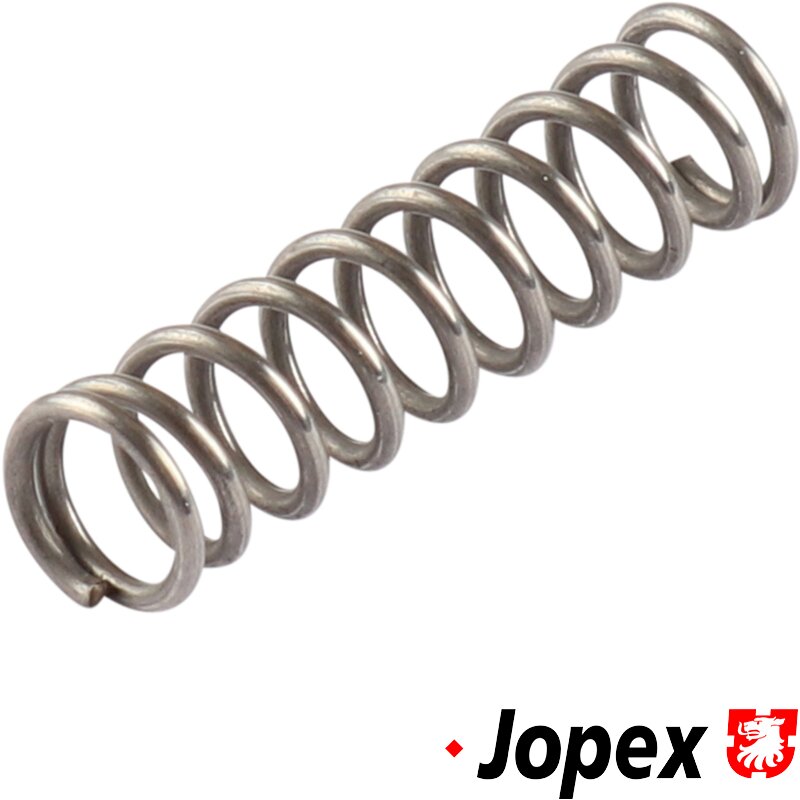

Distributor Drive Pinion Spring - All Aircooled and Waterboxer Engines

This distributor drive spring is an essential small part with a big job. It fits into the top of the distributor drive pinion, helping to maintain proper engagement and positioning of the distributor drive shaft. Without this spring, the distributor may lift slightly during engine operation, leading to potential timing issues or inefficient ignition performance.

Designed for all aircooled Volkswagen engines from 1200cc to 2000cc, this spring is a direct-fit replacement and is ideal for use in standard maintenance, distributor swaps, or complete engine rebuilds. It works by applying upward pressure to keep the drive pinion fully seated in the crankcase bore, ensuring consistent drive to the distributor rotor from the crankshaft.

To correctly install the distributor drive pinion and spring, 2 or 3 shims are typically required to achieve the correct height and spacing. These shims (available separately under part number 111105235A) help tailor the fit depending on whether you’re working with an aircooled or watercooled engine configuration.

Specifications:

• Function: Holds distributor drive pinion in position

• Material: Hardened spring steel

• Fitment: Installs into the top of the drive pinion in the crankcase

• Recommended Accessories: Distributor drive pinion shims (2–3 required), Part No: 111105235A

Vehicle Compatibility:

• VW Beetle: 1949–1979

• VW Splitscreen Bus: 1950–1967

• VW Baywindow Bus: 1968–1979

• VW Type 25 (T3): 1979–1992

• VW Karmann Ghia: 1955–1974

• VW Type 3: 1961–1973

• VW Trekker/Thing: 1968–1983

• VW Buggy & Baja conversions: 1949–1979

Fitting Notes:
Ensure the spring is placed securely into the top of the drive pinion before installation into the case. Correct shimming is critical for proper distributor alignment and gear mesh. Always verify proper distributor seating and rotation after installation.
