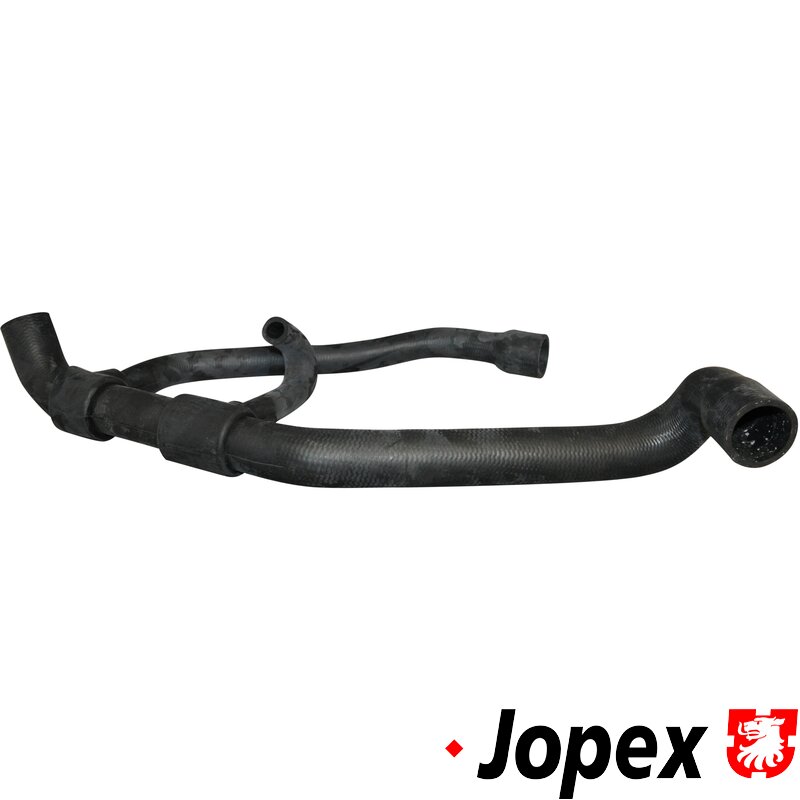

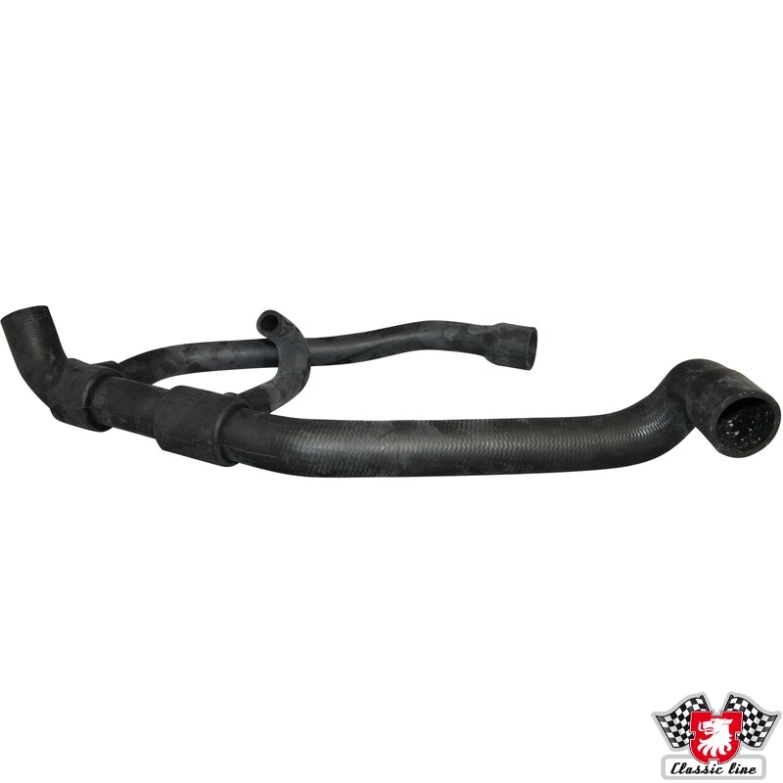

Type 25 Water Hose - Electric Water Pump To Radiator Feed Pipe And Header Tank And Block (4 Way) - 1986-92 - Diesel Engines
Part Number: 068121101H
This 4-way rubber coolant hose is a vital component in the cooling system of later VW Type 25 / T3 buses. It is specifically designed for models with 1600cc diesel, 1600cc turbo diesel, and 1700cc diesel engines, manufactured from August 1984 onward (from chassis number F 24-F-060 001).
The hose connects four critical cooling system components:
Top radiator metal pipe
Expansion tank
Oil cooler
Cylinder head flange
Made from durable rubber and formed to OE-style specifications, this high-quality replacement ensures a snug, leak-free fit and proper coolant flow through all four connection points. It is ideal for repairs or restorations where aging or brittle hoses need replacement.
⚠️ Note: This hose is not suitable for earlier models (pre-1984) which used a different profile and smaller diameter hose. That version is currently unavailable.
Fitting Requirements:
2 x 40mm hose clips – Part Number: N0164101
1 x 47mm hose clip – Part Number: N0164091
1 x 23mm hose clip – Part Number: N0164021
Applications:
VW Type 25 / T3 (Transporter / Vanagon): 1984 – 1992
(With 1600cc diesel, 1600cc turbo diesel, or 1700cc diesel engines)
This Part Fits: Type 25
Availability: Stock Item
Item Name: Radiator hose, expansion tank to water flange, water pump and thermostat housing
Description: Radiator Hose
Product Group: Cooling
Group: Cooling System
Unit of Measure: Each
Manufacturer: JOPEX
Dimensions:
Width: 260mm
Height: 560mm
Depth: 90mm
Volume: 13104000mm3
Weight: 0.829kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 01/81 - 01/81 | 1,6 | Diesel | Van | 50 | - | Construction Year from 198501 |
| VW | Bus/Transporter/Flatbed | T3 (T25) | 01/81 - 01/81 | 1,6 | Diesel | Bus | 50 | - | Construction Year from 198501 |
| VW | Bus/Transporter/Flatbed | T3 (T25) | 01/81 - 01/81 | 1,6 | Diesel | Platform/Chassis | 50 | - | Construction Year from 198501 |
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/84 - 08/84 | 1,7 | Diesel | Van | 57 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/85 - 08/85 | 1,7 | Diesel | Platform/Chassis | 57 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 10/86 - 10/86 | 1,7 | Diesel | Bus | 57 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 10/84 - 10/84 | 1,6 | Diesel | Van | 69 | - | Construction Year from 198501 |
| VW | Bus/Transporter/Flatbed | T3 (T25) | 03/86 - 03/86 | 1,6 | Diesel | Van | 69 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 03/86 - 03/86 | 1,6 | Diesel | Platform/Chassis | 69 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/84 - 08/84 | 1,6 | Diesel | Bus | 70 | - | Construction Year from 198501 |
| VW | Bus/Transporter/Flatbed | T3 (T25) | 10/84 - 10/84 | 1,6 | Diesel | Platform/Chassis | 70 | - | Construction Year from 198501 |
| VW | Bus/Transporter/Flatbed | T3 (T25) | 03/86 - 03/86 | 1,6 | Diesel | Bus | 70 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| VW | 068121101H |
| VAG | 068121101H |
