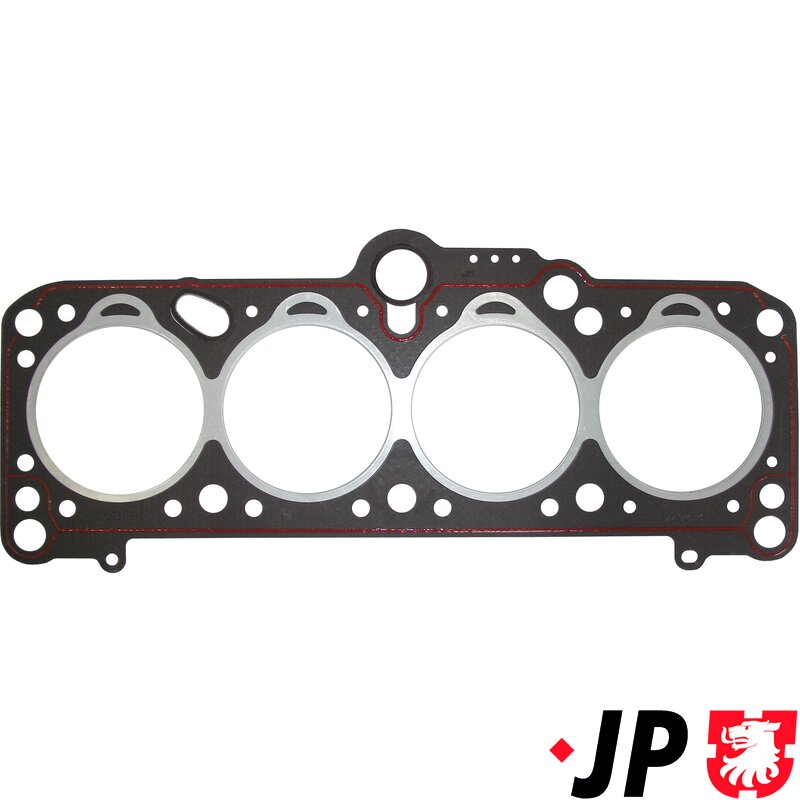

G1,G2 Cylinder Head Gasket - 1.6 Diesel (3 Notch)

High-quality 3-hole cylinder head gasket for Volkswagen 1.6 naturally aspirated and turbo diesel engines.

This replacement cylinder head gasket is designed for Volkswagen 1.6 diesel and turbo diesel engines and is manufactured to OE specifications, providing a reliable seal between the cylinder head and engine block. It seals the combustion chambers while preventing the mixing of coolant and engine oil, ensuring maximum engine performance and long-term reliability.

This is the 3-hole version, identified by the three notches (holes) on the edge of the gasket. Volkswagen used three different gasket thicknesses depending on piston projection after the engine was assembled. It is essential that the correct gasket is selected by measuring piston protrusion or by matching the original gasket removed from the engine.

Suitable for both naturally aspirated and turbocharged 1.6 diesel engines, this gasket is ideal for engine rebuilds, cylinder head replacement and routine engine repairs.

Quantity: Sold individually

Specifications

• Version: 3 Hole
• Cylinder Head Gasket Thickness: 1.61mm
• Suitable for 1.6 Diesel & Turbo Diesel Engines
• OE Specification Replacement

Gasket Selection Guide

Volkswagen supplied three gasket thicknesses:

• 1 Hole – Piston projection 0.81–0.90mm – Gasket thickness 1.53mm
• 2 Hole – Piston projection 0.91–1.00mm – Gasket thickness 1.57mm
• 3 Hole – Piston projection 1.01–1.10mm – Gasket thickness 1.61mm

Always confirm piston projection or match the original gasket before ordering.

Engine Compatibility

Suitable for the following engine codes:

Naturally Aspirated Diesel

• JK
• JP
• ME
• 1V

Turbo Diesel

• JR
• MF
• RA
• SB

Vehicle Fitment

Volkswagen Caddy Mk1 (1982-1992)

• 1.6 Diesel (55PS)
• Engine Codes: JK, ME
• From Chassis 14-G-000001

Volkswagen Golf Mk1 (1980-1983)

• 1.6 Diesel (54PS)
• 1.6 Turbo Diesel (70PS)

Volkswagen Golf Mk2 (1983-1991)

• 1.6 Diesel (50PS, 54PS, 60PS)
• 1.6 Turbo Diesel (70PS, 80PS)

Volkswagen Jetta Mk1 (1980-1984)

• 1.6 Diesel (54PS)
• 1.6 Turbo Diesel (70PS)

Volkswagen Jetta Mk2 (1984-1991)

• 1.6 Diesel (54PS, 60PS)
• 1.6 Turbo Diesel (70PS, 80PS)

Volkswagen Passat B2 (1980-1989)

• 1.6 Diesel (54PS)
• 1.6 Turbo Diesel (70PS, 80PS)

Volkswagen Passat B3/B4 (1988-1993)

• 1.6 Turbo Diesel (80PS)

Volkswagen Santana (1981-1984)

• 1.6 Diesel (54PS)
• 1.6 Turbo Diesel (70PS)

Fitting Notes

• 3-hole (1.61mm) version only.
• Always measure piston projection or match the original gasket before installation.
• We recommend fitting new cylinder head bolts whenever the cylinder head is removed.
• Check cylinder head flatness before reassembly.
• Ideal to replace the timing belt, tensioner, thermostat and water pump while access is available.

OEM Part Numbers

• VW: 068103383AC
• VW: 068103383CR
• VW: 068103383DD
• VW: 068103383DG
• VW: 068103383EK
• VW: 068103383ER

Related Parts Often Required:

• Cylinder head bolt set
• Full head gasket set
• Rocker cover gasket
• Inlet and exhaust manifold gaskets
• Timing belt kit
• Water pump
• Thermostat
• Coolant flange seals
