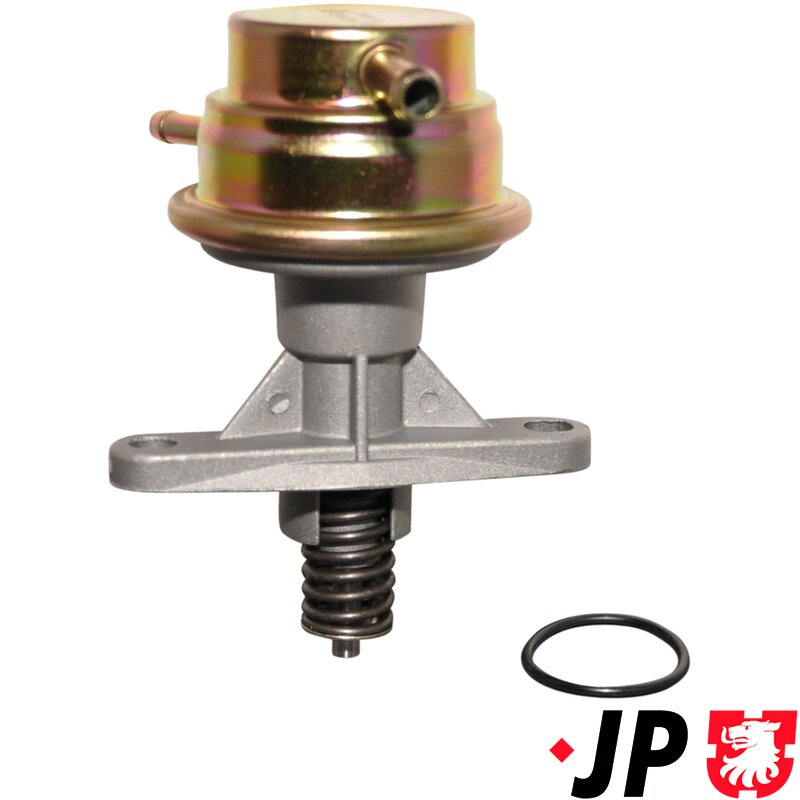

This is a mechanical, rebuildable fuel pump designed for Volkswagen petrol engines up to 1.3 litres, providing reliable fuel delivery from the tank to the carburettor.
The pump features 6 mm and 8 mm hose barbs, matching the original factory configuration. The inlet and outlet pipe orientation can be changed by undoing the retaining bolts and rotating the top section, allowing correct hose routing for different installations.
A mounting seal is included to ensure a proper seal to the engine block and prevent oil leaks during installation. Being rebuildable, the pump can be serviced in the future, extending service life and making it ideal for long-term ownership and classic VW maintenance.
Mechanical fuel pumps can weaken over time due to diaphragm wear, leading to poor fuel supply, hesitation, or starting issues. Replacing or rebuilding the pump restores correct fuel pressure and dependable engine operation.
Fitting notes: Check fuel hose condition, ensure correct inlet and outlet orientation before tightening bolts, replace hose clips if corroded, prime the system after installation, and inspect carefully for leaks.
1.0 Petrol: HZ
1.3 Petrol: 2G, MH, NU
VW Golf Mk2
1.0 & 1.3 Petrol (1986–1992)
VW Jetta Mk2
1.3 Petrol (1986–1991)
VW Polo Mk1 / Mk2 (86C)
1.0 & 1.3 Petrol (1982–1994)
Hatchback, Coupe & Saloon
Operating mode: Mechanical
Rebuildable: Yes
Hose connections: 6 mm & 8 mm barbs
Inlet/outlet orientation: Adjustable
Seal: Included
This Part Fits: Mk2 Golf, Jetta, Mk2 Polo,
Availability: Special Order Item
Item Name: Fuel pump
Description: Fuel Pump
Product Group: Engine
Group: Fuel Supply System
Unit of Measure: Each
Manufacturer: JP
Dimensions:
Width: 90mm
Height: 90mm
Depth: 115mm
Volume: 931500mm3
Weight: 0.6kg
| Manufacturer | Ref. No. |
|---|---|
| PIERBURG | 702242260 |
| VALEO | 474658 |
| QUINTON HAZELL | QFP162 |
| VW | 030127025 |
| VAICO | V100807 |
| VAG | 030127025 |
| JPGROUP | 127060001 |
