VW Beetle Engine Codes

The classic VW Beetle engine is an air-cooled 4 stroke flat-four design.

Over the 40 years of production of the VW Beetle there were six different engine sizes available.  The engine was referred to as the Type 1 and in later years was also installed in the Karmann Ghia, Splitscreen Bus, Baywindow Bus, Type 181 and Type 3 Variant.

From the start of production in 1945 to 1955 a 25HP engine was installed.  With a combination of a 64mm crankshaft and 4 x 75mm pistons it produced 1131cc.  It was fitted with a Solex 26 VFJ Carburettor in the centre of the engine.

25HP Engine in 1950 Beetle

25HP Engine in 1950 Beetle

From 1955 to 1960 the engine was upgraded to the 30HP.  This continued to use the same 64mm crankshaft but the pistons were increased in size to 77mm which increased the engine size to 1192cc.

In 1960 the VW 1200 was produced which included a new design in engine crankcase with a separate pedestal for the generator.  With this new crankcase came a new design in cylinder head and inlet manifold which now had fitted a new larger Solex 28 PICT-1 carburettor.  This new engine would produce 34HP.  There were a few changes in component design over the production years but the 1200cc engine would be fitted to the basic VW Beetle model right up until the end of the Beetles production.

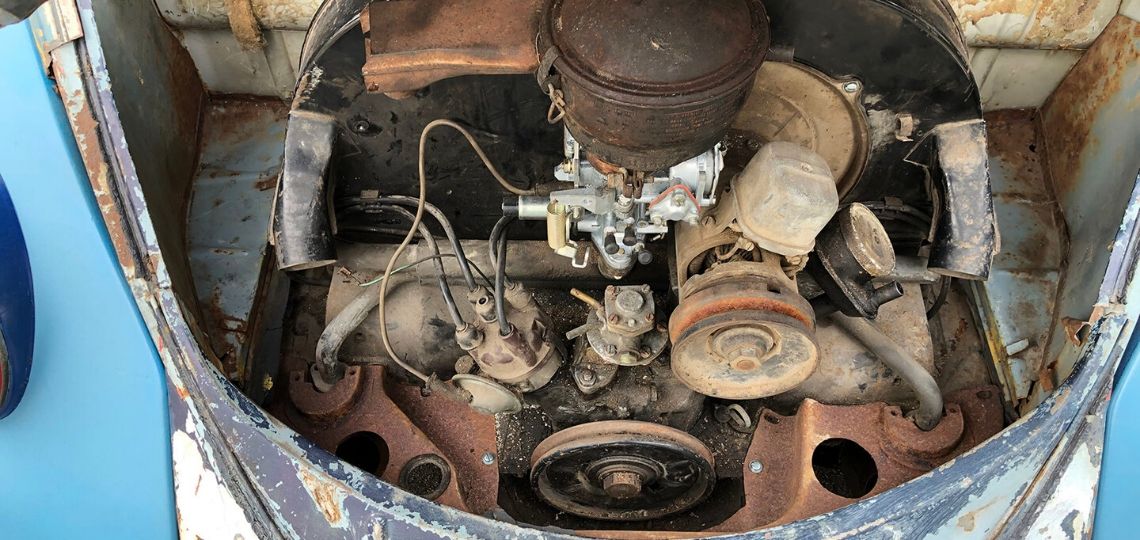

1200 Engine in 1960 Beetle

1200 Engine in 1960 Beetle

In 1965 the VW 1300 was produced which included a Single Port 1285cc engine.  In order to increase the engine size the new 69mm stroke crankshaft was fitted which physically made the engine wider than the 1200 model.  This 69mm crankshaft would be used as the base of all air-cooled 1500cc and 1600cc engines.  With the increase in engine size again the engine would see a new carburettor fitted.  The Solex 30 PICT-1.

1300cc Engine in 1968 Beetle

1300cc Engine in 1968 Beetle

From August 1970 the 1300cc engine had an upgrade and was fitted with Twin Port heads.  With the upgrade the oil cooler, cooling fan and engine tinware were changed to allow more airflow over the engine and through the oil cooler.  The carburettor was also upgraded to a 34 PICT 3.  The difference in this carburettor over the earlier models was that it was installed with an angled pilot jet position.

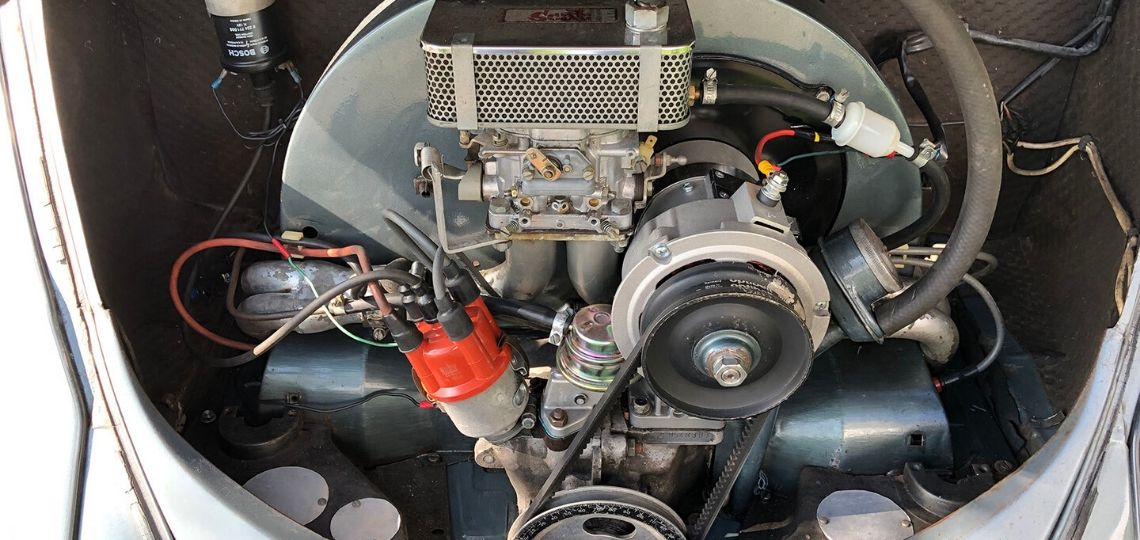

1600 Twin Port Engine in 1955 Beetle

1600 Twin Port Engine in 1955 Beetle

In August 1966, a year after the launch of the VW 1300, VW started producing the VW 1500.  This Beetle was fitted with the 44HP 1500cc Single Port engine that was fitted into the Splitscreen Bus.  With the same 69mm crankshaft the pistons were increased in size to 83mm.  With this new format the Beetles top speed rose to around 130KPH with a 0-100KPH of around 22 seconds.  This was around 10 seconds faster than the VW 1200.

In 1970 the VW 1302S was produced which as standard had a brand new 50HP 1600cc twin port engine.  Utilizing the same 69mm crankshaft this new engine was fitted with 85.5mm pistons.

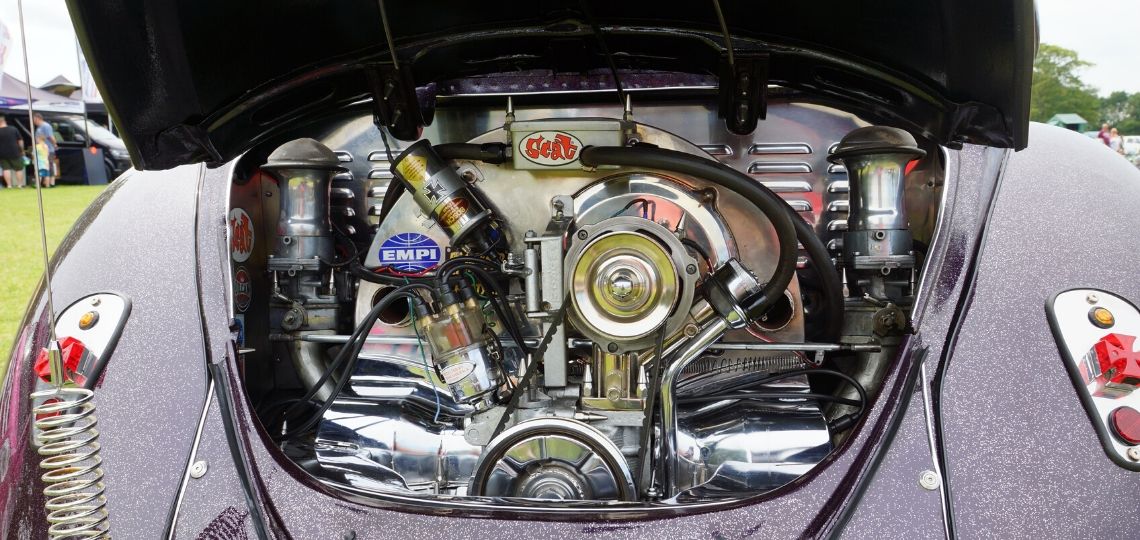

Custom Engine in 1971 Beetle

Custom Engine in 1971 Beetle

VW Beetle Engine Codes

ENGINE SIZEENGINE CODESP/TPYEARBHP
1131cc1-SINGLE PORT1945-195525HP
1192cc2, 3, 4SINGLE PORT1955-196030HP
1200cc5, 6, 7, 8, 9SINGLE PORT1961-196534HP
1200ccDSINGLE PORT08/1965>34HP
1300ccESINGLE PORT08-1965-07/197037HP
1300ccFSINGLE PORT08/1965-07/197040HP
1300ccABTWIN PORT08/1970-07/197344HP
1300ccACTWIN PORT1971-197240HP
1300ccARTWIN PORT08/1973-07/197544HP
1500ccHSINGLE PORT08/1965-07/7044HP
1500ccLSINGLE PORT1967-197040HP
1600ccBSINGLE PORT197047HP
1600ccADTWIN PORT08/1970-07/197350HP
1600ccAETWIN PORT08/1970-07/197150HP
1600ccAFTWIN PORT08/1970-01/098046HP
1600ccAHTWIN PORT08/1973-01/197448HP
1600ccAJTWIN PORT08/1974-12/198050HP
1600ccAKTWIN PORT197348HP
1600ccASTWIN PORT08/1973-07/198050HP
1600ccACDTWIN PORT1992-200446HP
