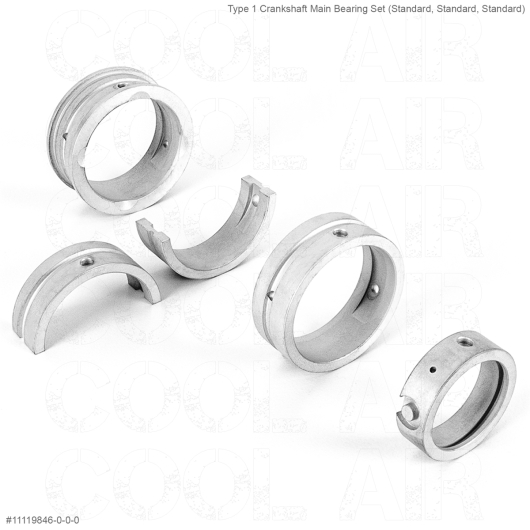

Type 1 Crankshaft Main Bearing Set (Standard, Standard, Standard) Glyco

Replacement crankshaft main bearings for use on all aircooled 1200cc to 1600cc Type 1 engines.

Quality: Top quality reproduction.

Fitment: These bearings are for engines that have had the following machine work:

• Crank: Standard GRIND
• Case: Standard BORE
• Thrust: Standard CUT

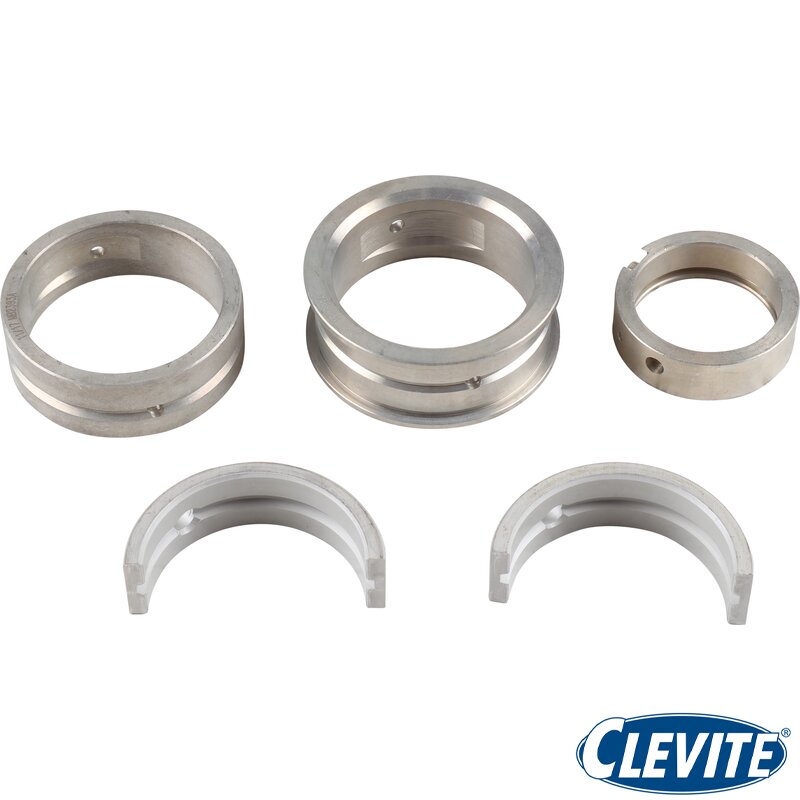

Measurements: If measuring your existing bearings to identify which you require, you can obtain all the measurements from the main thrust bearing with the collars (bearing pictured on the far right of the image).

 For reference standard main bearings measure:

• 55mm (ID) – Crankshaft measurement
• 65mm (OD) – Crankcase measurement
• 22mm – (WIDTH) – Thrust measurement (width between thrust surfaces on bearing nearest the flywheel)

Fitting: Steel backed main bearings also available, see part number AC19846, for 25hp + 30hp main bearings see part number 11119845

Quantity: 1 set (4 bearings) for 1 engine

Applications:

VW Beetle: 1960 – 1979

VW Splitscreen Van: 1960 – 1967

VW Baywindow Van: 1968 – 1979

VW Type 25 or T3: CT 1600cc Engines

VW Karmann Ghia: 1960 – 1974

VW Type 3: 1961 – 1973

VW Trekker: 1968 – 1983

VW Buggy + Baja: 1960 – 1979
