1384cc Barrel And Piston Kit - 83mm Bore Type 1 Engines (For Use On 1200cc Engines With 87mm Crankcase Hole)
Part Number: AC198800
£399.50 inc. VAT
In Stock at Warehouse 20-27 Day Delivery

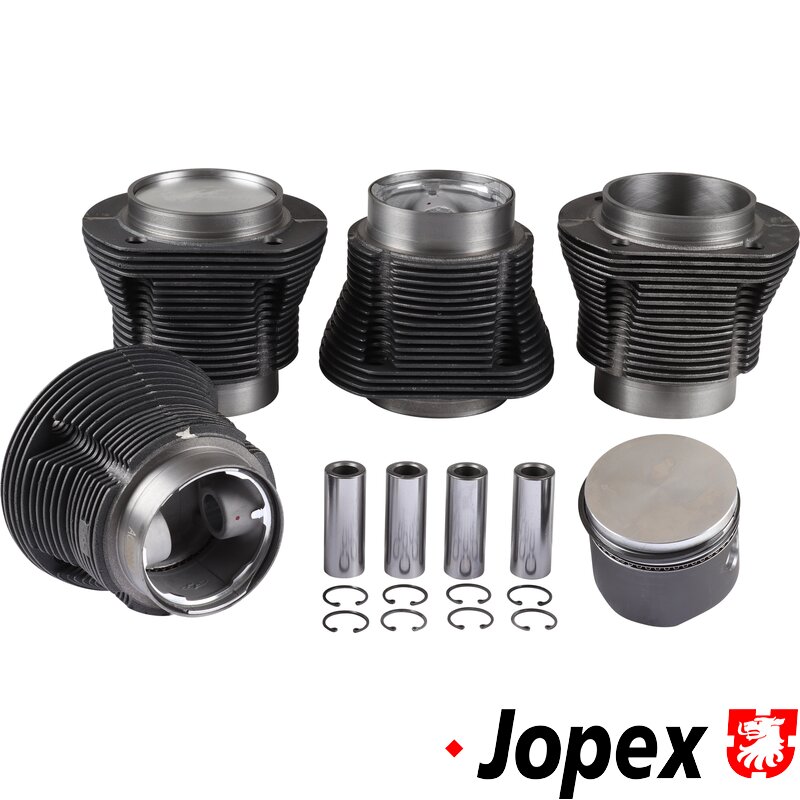

Upgrade your 1200cc single relief engine to 1384cc with this slip in cast piston and barrel kit.
83mm diameter barrels, with 20mm gudgeon pins
Quality: Good quality
Quantity: Kit includes
- 4 Barrels
- 4 Pistons
- 4 Gudgeon Pins
- 8 Gudgeon Pin Clips
- All Piston Rings
Fitment: For single relief cases with a 87mm barrel hole in the crankcase, up to engine number D525049 and from D1430281.
Applications:
VW Beetle: 1949 – 1969
VW Splitscreen Van: 1950 – 1962
VW Karmann Ghia: 1955 – 1969
VW Buggy + Baja: 1949 – 1969
This Part Fits: Beetle, Karmann Ghia, Buggy, Splitscreen,
Availability: Special Order Item
Item Name: Big bore piston and cylinder set, casted, bore 83.0 mm, stroke 64.0 mm, upper 90 mm, lower 87 mm, CLASSIC
Description: Repair Set, piston/sleeve
Product Group: Engine
Group: Crankshaft Drive
Unit of Measure: Set
Manufacturer: JOPEX
Dimensions:
Width: 300mm
Height: 397mm
Depth: 150mm
Volume: 17865000mm3
Weight: 11.68kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW Classic | Beetle Type 1 | 1302 | 08/69 - 08/69 | 1,2 | Petrol | Saloon | 34 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 04/75 - 04/75 | 1,2 | Petrol | Convertible | 34 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/60 - 01/60 | 1,2 | Petrol | Saloon | 34 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 04/60 - 04/60 | 1,2 | Petrol | Saloon | 35 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Convertible | 08/57 - 08/57 | 1,2 | Petrol | Convertible | 34 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 08/60 - 08/60 | 1,2 | Petrol | Coupe | 34 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| JPGROUP | AC198840 |
| EMPI | 981947B |
| EMPI | 98-1947-B |
FAQs
You will need to measure the bore size in the crankcase. These kits only work with 87mm bore crankcases. It should increase your power by around 10HP.
No I am afraid it is only available for the 87mm version.
No this kit will not work with a 30HP engine. It will only work on the later 1200cc engine from 1960 onwards (34HP Engines).
These would fit original 1200cc engines from 1960 to 1969 and very late engines from 1978 onwards. To be certain you would need to measure the bore of your crankcase.
