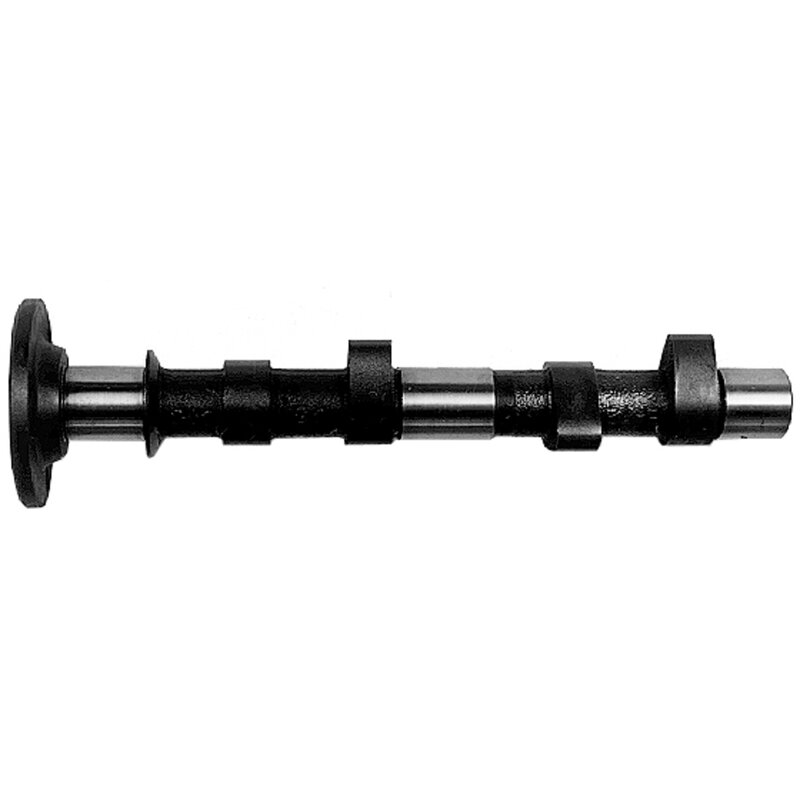

Engle W110 Camshaft - Type 1 Engines
Part Number: AC109W110
£169.50 inc. VAT
In Stock at Warehouse 4-5 Day Delivery
The Engle W110 performance camshaft is a proven and extremely popular upgrade for VW Type 1 aircooled engines based around 1200cc to 1600cc units. Designed for street use, the W110 delivers strong low and mid-range power while still allowing the engine to pull well into higher RPM, making it ideal for fast-road cars that want a noticeable performance increase without sacrificing everyday drivability.
Compared to milder camshafts, the W110 offers increased duration and lift, improving cylinder filling and airflow through the engine. This results in stronger acceleration, improved throttle response, and a wider usable power band. It works especially well in engines fitted with twin carburettors, a free-flow exhaust, and a sensible compression ratio, making it a favourite choice for spirited road-driven Beetles and other Type 1-powered vehicles.
Manufactured to Engle’s exacting standards, the W110 camshaft features precision-ground lobes and consistent timing profiles for reliable performance and long service life. When correctly matched with supporting components, it offers an excellent balance between street manners and performance potential.
Important Fitment Notes
Requires an early-style 3-bolt cam gear
Compatible with up to 1971-style oil pumps only
Camshaft supplied on its own – cam gear is not included
Multiple cam gear options are available; please see associated products
Correct matching of cam gear, oil pump, lifters, and valve train components is essential for successful installation.
Camshaft Specifications (W110)
Application: Street / fast-road use
Duration: 284°
Duration @ 0.050″: 247°
Lift at Cam: 0.392″
Lift at Valve (1.1:1 rockers): 0.431″
Lift at Valve (1.25:1 rockers): 0.491″
Fitting Notes & Recommendations
Fits VW Type 1 aircooled engines (1200cc–1600cc)
Requires 3-bolt cam gear
Fits engines using pre-1972 oil pump design only
Always install with new cam followers/lifters
Correct cam break-in lubricant and procedure essential
Professional engine assembly strongly recommended
This Part Fits: Beetle, Karmann Ghia, Baywindow, Splitscreen, Trekker, Type 3, Buggy,
Availability: Stock Item
Item Name: Engle racing camshaft, W-110, 284° duration
Description: Camshaft
Product Group: Engine
Group: Engine Timing
Unit of Measure: Each
Manufacturer: Engle
Dimensions:
Width: 80mm
Height: 300mm
Depth: 75mm
Volume: 1800000mm3
Weight: 1.32kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW Classic | Baja | Baja | 08/68 - 08/68 | 1,6 | Petrol | Closed Off-Road Vehicle | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/69 - 08/69 | 1,2 | Petrol | Saloon | 34 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Convertible | 39 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Saloon | 39 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,6 | Petrol | Convertible | 46 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 07/71 - 07/71 | 1,6 | Petrol | Saloon | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 01/70 - 01/70 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 07/72 - 07/72 | 1,2 | Petrol | Saloon | 34 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 04/75 - 04/75 | 1,2 | Petrol | Convertible | 34 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 07/70 - 07/70 | 1,3 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,3 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/70 - 08/70 | 1,6 | Petrol | Convertible | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,6 | Petrol | Saloon | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 07/70 - 07/70 | 1,6 | Petrol | Convertible | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/49 - 07/49 | 1,1 | Petrol | Convertible | 24 | - | Construction Year from 195401 |
| VW Classic | Beetle Type 1 | Type 1 std | 01/54 - 01/54 | 1,2 | Petrol | Convertible | 30 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/54 - 01/54 | 1,2 | Petrol | Saloon | 30 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/60 - 01/60 | 1,2 | Petrol | Saloon | 34 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 04/60 - 04/60 | 1,2 | Petrol | Saloon | 35 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/65 - 08/65 | 1,3 | Petrol | Saloon | 37 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/68 - 01/68 | 1,3 | Petrol | Saloon | 38 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/64 - 07/64 | 1,3 | Petrol | Convertible | 40 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/65 - 08/65 | 1,3 | Petrol | Saloon | 40 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 09/66 - 09/66 | 1,5 | Petrol | Saloon | 40 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/66 - 01/66 | 1,5 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/66 - 08/66 | 1,5 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/70 - 01/70 | 1,3 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/69 - 07/69 | 1,6 | Petrol | Convertible | 48 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/70 - 07/70 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/75 - 08/75 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Buggy | Buggy | 08/63 - 08/63 | 1,6 | Petrol | Open Off-Road Vehicle | 50 | - | -
|
| VW Classic | Transporter | T1 | 01/50 - 01/50 | 1,1 | Petrol | Bus | 24 | - | Construction Year from 195401 |
| VW Classic | Transporter | T1 | 01/50 - 01/50 | 1,2 | Petrol | Platform/Chassis | 34 | - | Construction Year from 195401 |
| VW Classic | Transporter | T1 | 01/50 - 01/50 | 1,2 | Petrol | Van | 34 | - | Construction Year from 195401 |
| VW Classic | Transporter | T1 | 02/62 - 02/62 | 1,2 | Petrol | Van | 34 | - | -
|
| VW Classic | Transporter | T1 | 11/62 - 11/62 | 1,2 | Petrol | Bus | 34 | - | -
|
| VW Classic | Transporter | T1 | 11/62 - 11/62 | 1,5 | Petrol | Bus | 42 | - | -
|
| VW Classic | Transporter | T1 | 02/62 - 02/62 | 1,5 | Petrol | Van | 44 | - | -
|
| VW Classic | Transporter | T1 | 06/66 - 06/66 | 1,5 | Petrol | Platform/Chassis | 44 | - | -
|
| VW Classic | Transporter | T1 | 07/66 - 07/66 | 1,5 | Petrol | Bus | 44 | - | -
|
| VW Classic | Transporter | T2 | 08/67 - 08/67 | 1,6 | Petrol | Bus | 47 | - | -
|
| VW Classic | Transporter | T2 | 08/68 - 08/68 | 1,6 | Petrol | Van | 48 | - | -
|
| VW Classic | Transporter | T2 | 08/68 - 08/68 | 1,6 | Petrol | Platform/Chassis | 50 | - | -
|
| VW Classic | Transporter | T2 | 08/70 - 08/70 | 1,6 | Petrol | Bus | 50 | - | -
|
| VW Classic | Transporter | T2 | 08/70 - 08/70 | 1,6 | Petrol | Van | 50 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| VAG | 113109019 |
| JPGROUP | AC109010 |
