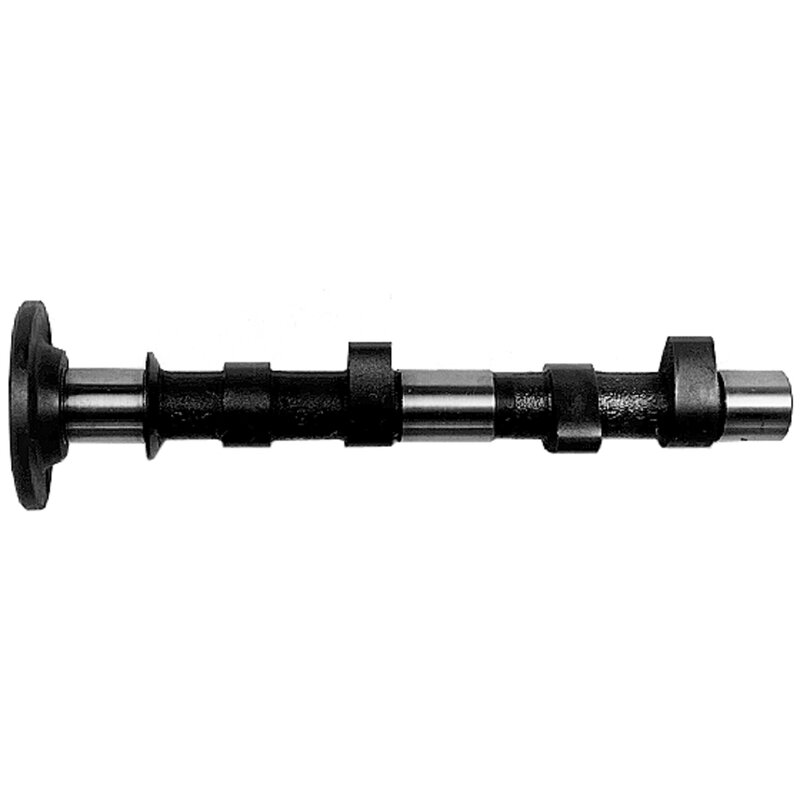

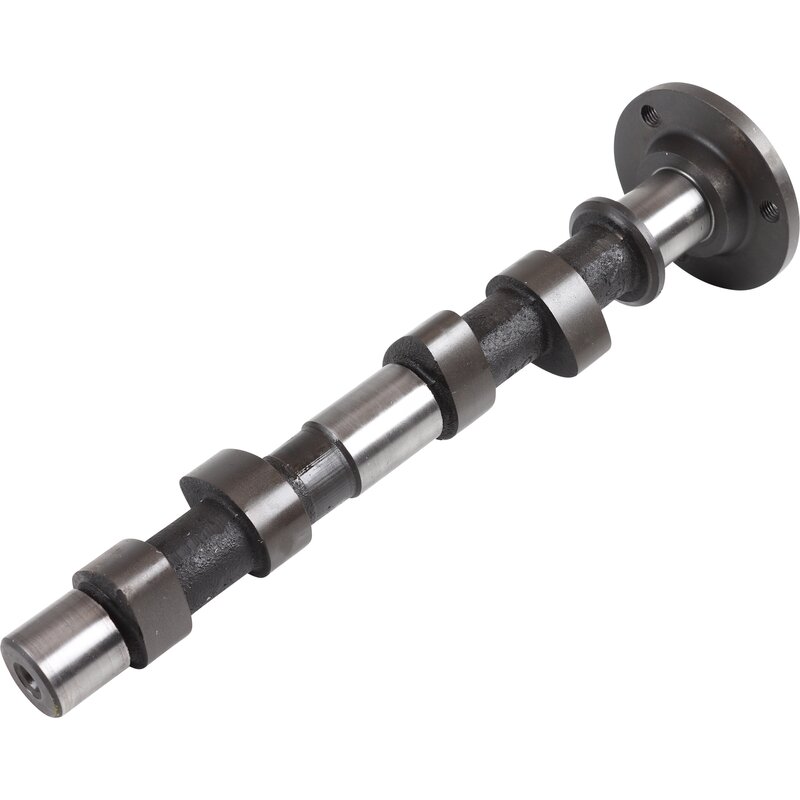

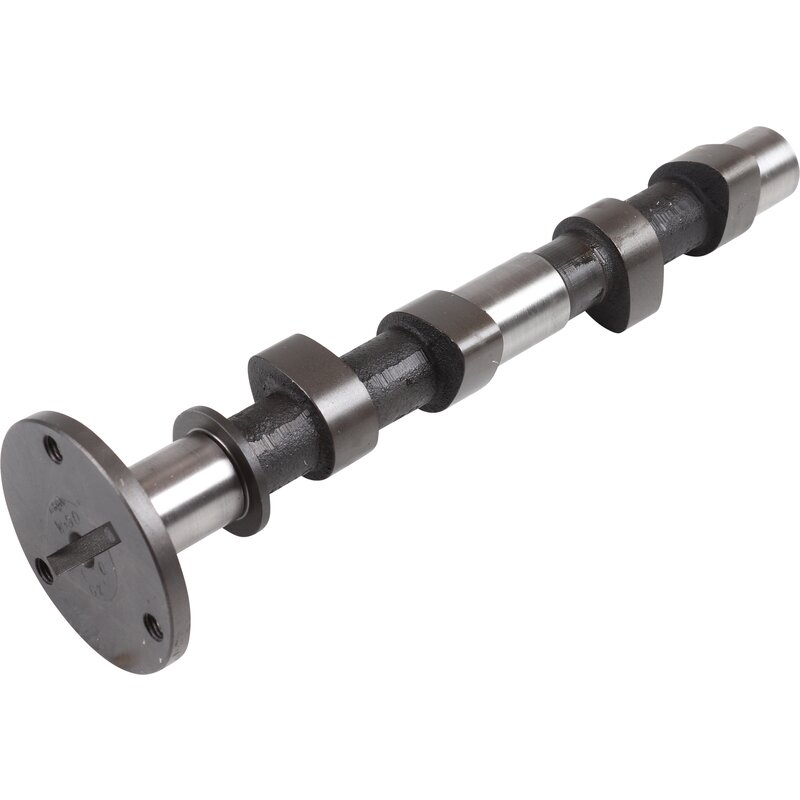

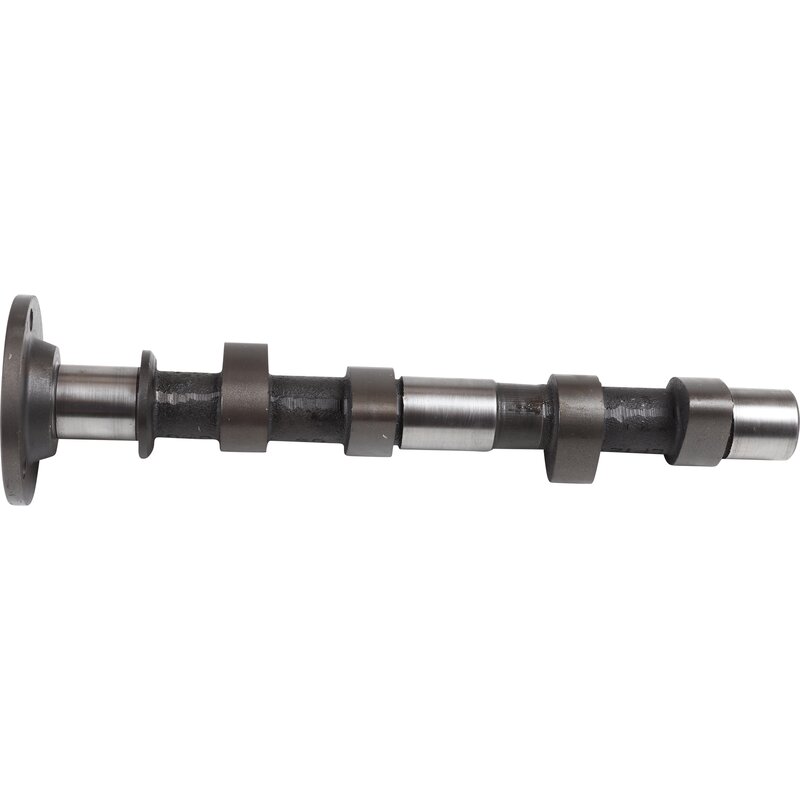

Engle W100 Camshaft - Type 1 Engines

The Engle W100 performance camshaft is one of the most popular and proven camshaft upgrades for VW Type 1 aircooled engines ranging from 1200cc to 1600cc, making it an excellent choice for fast-road and street-driven engines. Designed to deliver a smooth, usable power increase without sacrificing reliability or drivability, the W100 is ideal for small-displacement performance builds.

This camshaft provides improved valve timing over stock, increasing airflow through the engine and enhancing torque and mid-range power. It is particularly well suited to engines running twin carburettors, mild compression increases, and free-flowing exhaust systems. In a correctly matched setup, the W100 delivers a noticeable performance gain while maintaining good idle quality and everyday usability.

The W100 camshaft is manufactured to Engle’s exacting standards using high-quality materials and precise lobe profiles to ensure consistent performance and long service life. It is a favourite choice for classic Beetles, early Buses, and other lightweight Type 1-powered vehicles where street manners are just as important as extra power.

Important Fitment Notes

• These camshafts require an early-style 3-bolt cam gear

• Compatible with up to 1971-style oil pumps only

• Camshaft supplied on its own – cam gear is not included

• A suitable 3-bolt cam gear must be purchased separately (see associated products)

Correct component matching is essential. Always confirm oil pump style, cam gear compatibility, and overall engine specification before installation.

Camshaft Specifications (W100)

• Application: Street / fast-road use

• Duration: 276°

• Duration @ 0.050″: 236°

• Lift at Cam: 0.383″

• Lift at Valve (1.1:1 rockers): 0.421″

• Lift at Valve (1.25:1 rockers): 0.478″

Fitting Notes & Recommendations

• Fits VW Type 1 aircooled engines (1200cc–1600cc)

• Requires 3-bolt cam gear

• Fits engines using pre-1972 oil pump design only

• New camshaft should always be installed with new lifters

• Proper cam break-in procedure and lubricant essential

• Professional engine assembly strongly recommended
