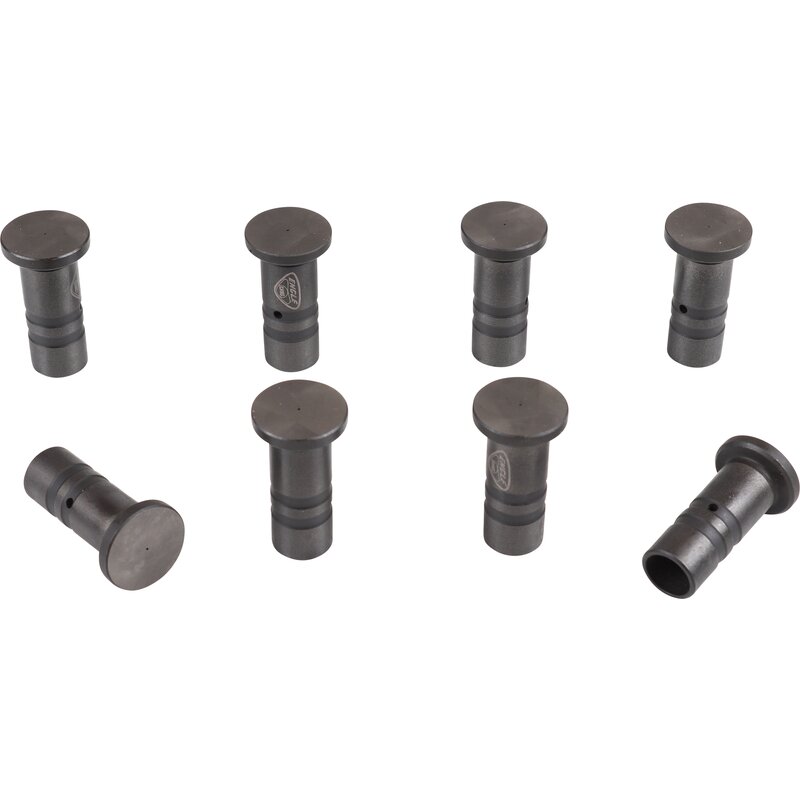

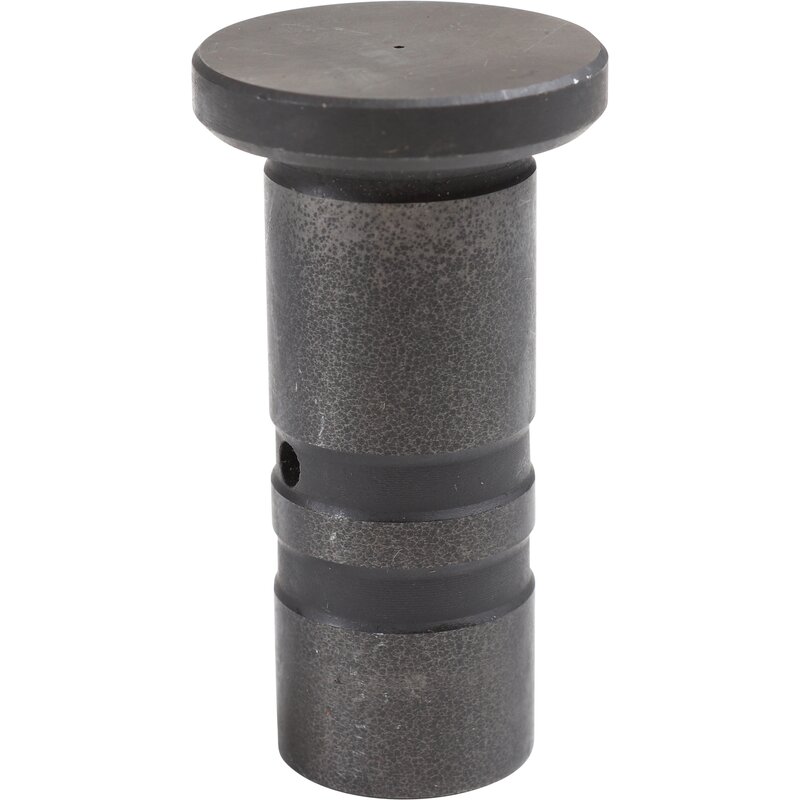

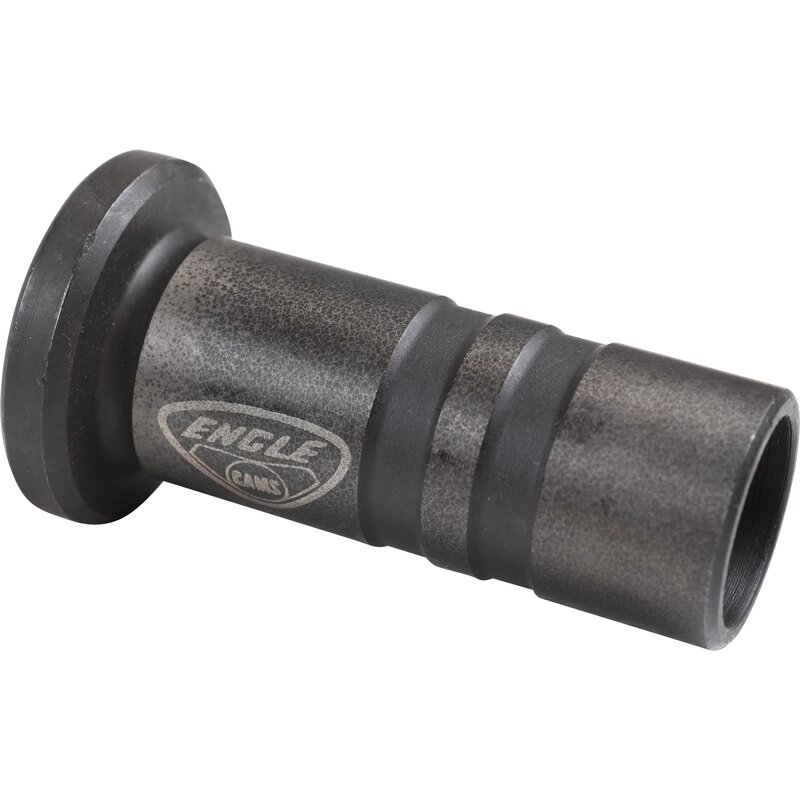

Phosphate Coated Engle 28mm Cam Followers (Lifters) With EDM Oiling Hole - Type 1 Engines

These Engle 28mm phosphate coated cam lifters with EDM oiling holes represent the ultimate lifter upgrade for high-performance VW Type 1 aircooled engines, particularly those running high-lift, aggressive camshafts and increased valve spring pressures. They are widely regarded as a must-have component for serious fast-road, race, and endurance engine builds.

Each lifter features a 28mm diameter head and weighs approximately 100 grams, providing the ideal balance between strength and controlled valvetrain mass. The larger lifter face distributes load more evenly across the cam lobe, reducing contact stress and helping to prevent camshaft wear in demanding applications.

The addition of a precision EDM (Electrical Discharge Machining) oiling hole through the lifter face is a key performance advantage. This EDM hole directs a constant supply of pressurised engine oil directly onto the cam lobe–lifter interface, significantly improving lubrication where it is needed most. This dramatically reduces friction and heat, extending camshaft and lifter life—especially critical with high lift cams and heavy duty or dual valve springs.

The phosphate coating further enhances protection during initial start-up and cam break-in by providing a sacrificial lubricating layer before full oil pressure is established. When combined with proper assembly lube and correct break-in procedures, these lifters offer excellent reliability and longevity.

Manufactured to Engle’s exacting standards, these lifters are precision finished to ensure correct rotation within the lifter bores and consistent performance over time. Supplied as a set of 8, this kit is enough to fully equip one complete Type 1 aircooled engine.

Fitting Notes & Additional Requirements

• Fits VW Type 1 aircooled engines only

• 28mm lifter head diameter

• Approx. 100g per lifter

• EDM oiling hole for direct cam lobe lubrication

• Phosphate coated for improved cam break-in protection

• Strongly recommended for high-lift and high-RPM camshafts

• Always use proper cam and lifter break-in lubricant

• New lifters must always be fitted with a new camshaft

• Professional engine assembly recommended
