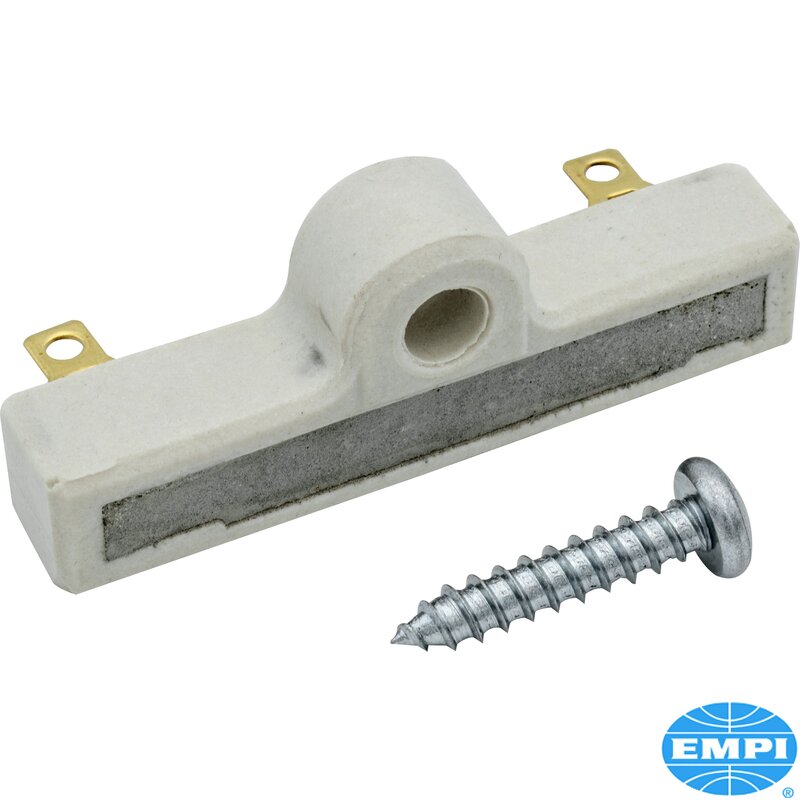

External Ballast Resister 1.35 Ohm
Part Number: AC0094010
Heavy duty ceramic resistor for use with ignition coils. These resistors reduce point pitting and burning
They will extend points life. Used to supplement the ignition coil`s primary resistance
Ballast resistors have been used for many decades to reduce current to the points or electronic ignition module, extending their lives
Also helps to protect electronic ignition conversion kits from overheating due to excess electrical current. Usually mounted on the firewall or on the ignition coil
Wired between the coils positive terminal and the condenser or electronic ignition module
This Part Fits: Beetle, Karmann Ghia, Baywindow, Splitscreen, Trekker, Type 3, Buggy,
Availability: Special Order Item
Item Name: External ballast resistor, Heavy Duty, ceramic, 1.35 Ohm
Description: Series Resistor, ignition system
Product Group: Electric
Group: Ignition System
Unit of Measure: Each
Manufacturer: EMPI
Dimensions:
Width: 115mm
Height: 150mm
Depth: 35mm
Volume: 603750mm3
Weight: 0.068kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW Classic | Baja | Baja | 08/68 - 08/68 | 1,6 | Petrol | Closed Off-Road Vehicle | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/69 - 08/69 | 1,2 | Petrol | Saloon | 34 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Convertible | 39 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Saloon | 39 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,6 | Petrol | Convertible | 46 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 07/71 - 07/71 | 1,6 | Petrol | Saloon | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 01/70 - 01/70 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 04/75 - 04/75 | 1,2 | Petrol | Convertible | 34 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 07/70 - 07/70 | 1,3 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,3 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/70 - 08/70 | 1,6 | Petrol | Convertible | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,6 | Petrol | Saloon | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 07/70 - 07/70 | 1,6 | Petrol | Convertible | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 12/47 - 12/47 | 1,1 | Petrol | Saloon | 24 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/49 - 07/49 | 1,1 | Petrol | Convertible | 24 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/54 - 01/54 | 1,2 | Petrol | Convertible | 30 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/54 - 01/54 | 1,2 | Petrol | Saloon | 30 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/60 - 01/60 | 1,2 | Petrol | Saloon | 34 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 04/60 - 04/60 | 1,2 | Petrol | Saloon | 35 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/65 - 08/65 | 1,3 | Petrol | Saloon | 37 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/68 - 01/68 | 1,3 | Petrol | Saloon | 38 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/64 - 07/64 | 1,3 | Petrol | Convertible | 40 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/65 - 08/65 | 1,3 | Petrol | Saloon | 40 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/66 - 01/66 | 1,5 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/66 - 08/66 | 1,5 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/70 - 01/70 | 1,3 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/69 - 07/69 | 1,6 | Petrol | Convertible | 48 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/70 - 07/70 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/75 - 08/75 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Buggy | Buggy | 08/63 - 08/63 | 1,6 | Petrol | Open Off-Road Vehicle | 50 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Convertible | 08/57 - 08/57 | 1,2 | Petrol | Convertible | 34 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Convertible | 07/64 - 07/64 | 1,3 | Petrol | Convertible | 39 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Convertible | 01/66 - 01/66 | 1,5 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 08/60 - 08/60 | 1,2 | Petrol | Coupe | 34 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 01/66 - 01/66 | 1,5 | Petrol | Coupe | 44 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 07/70 - 07/70 | 1,3 | Petrol | Coupe | 44 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 07/71 - 07/71 | 1,6 | Petrol | Coupe | 48 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 01/70 - 01/70 | 1,6 | Petrol | Coupe | 50 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 08/61 - 08/61 | 1,5 | Petrol | Coupe | 54 | - | -
|
| VW Classic | The Thing 181 | The Thing 181 | 09/69 - 09/69 | 1,5 | Petrol | Open Off-Road Vehicle | 44 | - | -
|
| VW Classic | The Thing 181 | The Thing 181 | 08/70 - 08/70 | 1,6 | Petrol | Open Off-Road Vehicle | 44 | - | -
|
| VW Classic | The Thing 181 | The Thing 181 | 03/73 - 03/73 | 1,6 | Petrol | Open Off-Road Vehicle | 48 | - | -
|
| VW Classic | Transporter | T1 | 01/50 - 01/50 | 1,1 | Petrol | Bus | 24 | - | -
|
| VW Classic | Transporter | T1 | 01/50 - 01/50 | 1,2 | Petrol | Platform/Chassis | 34 | - | -
|
| VW Classic | Transporter | T1 | 01/50 - 01/50 | 1,2 | Petrol | Van | 34 | - | -
|
| VW Classic | Transporter | T1 | 02/62 - 02/62 | 1,2 | Petrol | Van | 34 | - | -
|
| VW Classic | Transporter | T1 | 11/62 - 11/62 | 1,2 | Petrol | Bus | 34 | - | -
|
| VW Classic | Transporter | T1 | 11/62 - 11/62 | 1,5 | Petrol | Bus | 42 | - | -
|
| VW Classic | Transporter | T1 | 02/62 - 02/62 | 1,5 | Petrol | Van | 44 | - | -
|
| VW Classic | Transporter | T1 | 06/66 - 06/66 | 1,5 | Petrol | Platform/Chassis | 44 | - | -
|
| VW Classic | Transporter | T1 | 07/66 - 07/66 | 1,5 | Petrol | Bus | 44 | - | -
|
| VW Classic | Transporter | T2 | 08/67 - 08/67 | 1,6 | Petrol | Bus | 47 | - | -
|
| VW Classic | Transporter | T2 | 08/68 - 08/68 | 1,6 | Petrol | Platform/Chassis | 50 | - | -
|
| VW Classic | Transporter | T2 | 08/70 - 08/70 | 1,6 | Petrol | Bus | 50 | - | -
|
| VW Classic | Transporter | T2 | 08/70 - 08/70 | 1,6 | Petrol | Van | 50 | - | -
|
| VW Classic | Transporter | T2 | 08/71 - 08/71 | 1,7 | Petrol | Bus | 66 | - | -
|
| VW Classic | Transporter | T2 | 08/71 - 08/71 | 1,7 | Petrol | Van | 67 | - | -
|
| VW Classic | Transporter | T2 | 11/73 - 11/73 | 1,8 | Petrol | Van | 68 | - | -
|
| VW Classic | Transporter | T2 | 11/73 - 11/73 | 1,8 | Petrol | Bus | 68 | - | -
|
| VW Classic | Transporter | T2 | 08/76 - 08/76 | 2,0 | Petrol | Van | 69 | - | -
|
| VW Classic | Transporter | T2 | 08/75 - 08/75 | 2,0 | Petrol | Bus | 70 | - | -
|
| VW Classic | Type 3 (1500/1600) | Hatchback (31) | 07/68 - 07/68 | 1,5 | Petrol | Hatchback | 45 | - | -
|
| VW Classic | Type 3 (1500/1600) | Hatchback (31) | 08/65 - 08/65 | 1,6 | Petrol | Hatchback | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 04/61 - 04/61 | 1,5 | Petrol | Saloon | 45 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 07/64 - 07/64 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 08/63 - 08/63 | 1,5 | Petrol | Saloon | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 08/65 - 08/65 | 1,6 | Petrol | Saloon | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 08/65 - 08/65 | 1,6 | Petrol | Saloon | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Variant (36) | 04/61 - 04/61 | 1,5 | Petrol | Estate | 45 | - | -
|
| VW Classic | Type 3 (1500/1600) | Variant (36) | 08/63 - 08/63 | 1,5 | Petrol | Estate | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Variant (36) | 08/65 - 08/65 | 1,6 | Petrol | Estate | 54 | - | -
|
| VW Classic | Type 4 (411/412) | Type 4 (411/412) | 07/68 - 07/68 | 1,7 | Petrol | Saloon | 68 | - | -
|
| VW Classic | Type 4 (411/412) | Type 4 (411/412) | 07/73 - 07/73 | 1,8 | Petrol | Estate | 75 | - | -
|
| VW Classic | Type 4 (411/412) | Type 4 (411/412) | 07/73 - 07/73 | 1,8 | Petrol | Saloon | 75 | - | -
|
| VW Classic | Type 4 (411/412) | Type 4 (411/412) | 09/69 - 09/69 | 1,7 | Petrol | Saloon | 80 | - | -
|
| VW Classic | Type 4 (411/412) | Type 4 (411/412) | 01/72 - 01/72 | 1,7 | Petrol | Estate | 80 | - | -
|
| VW Classic | Type 4 (411/412) | Type 4 (411/412) | 07/73 - 07/73 | 1,8 | Petrol | Estate | 86 | - | -
|
| VW Classic | Type 4 (411/412) | Type 4 (411/412) | 07/73 - 07/73 | 1,8 | Petrol | Saloon | 86 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| EMPI | 0094010 |
| EMPI | 00-9401-0 |
