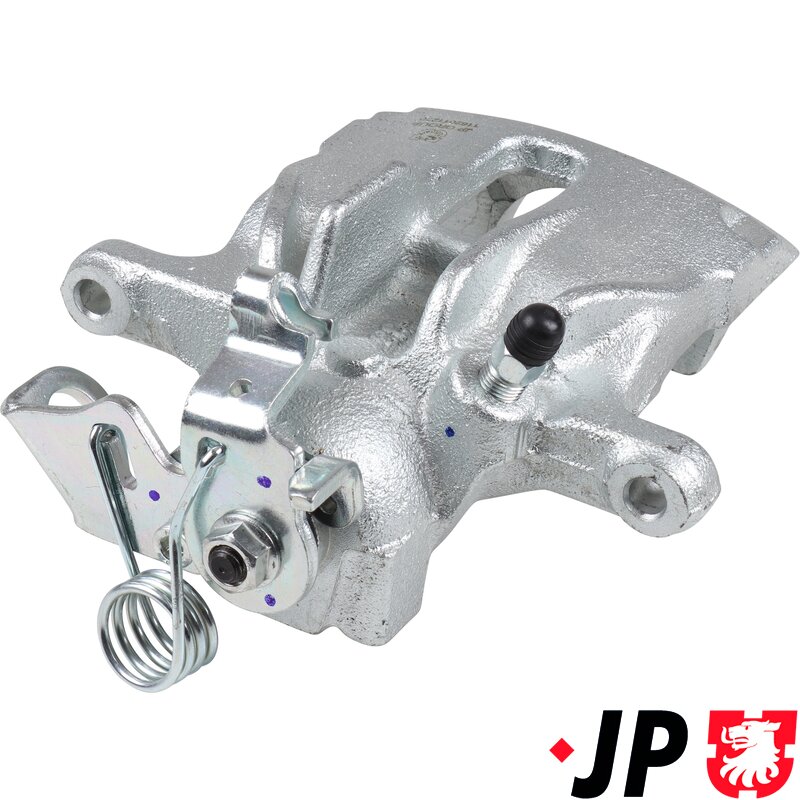

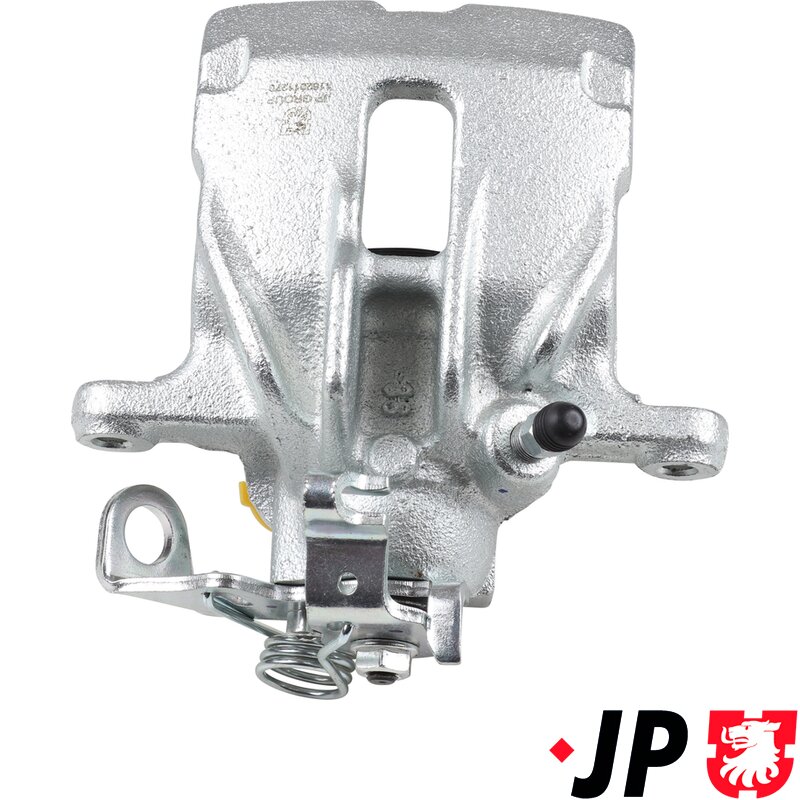

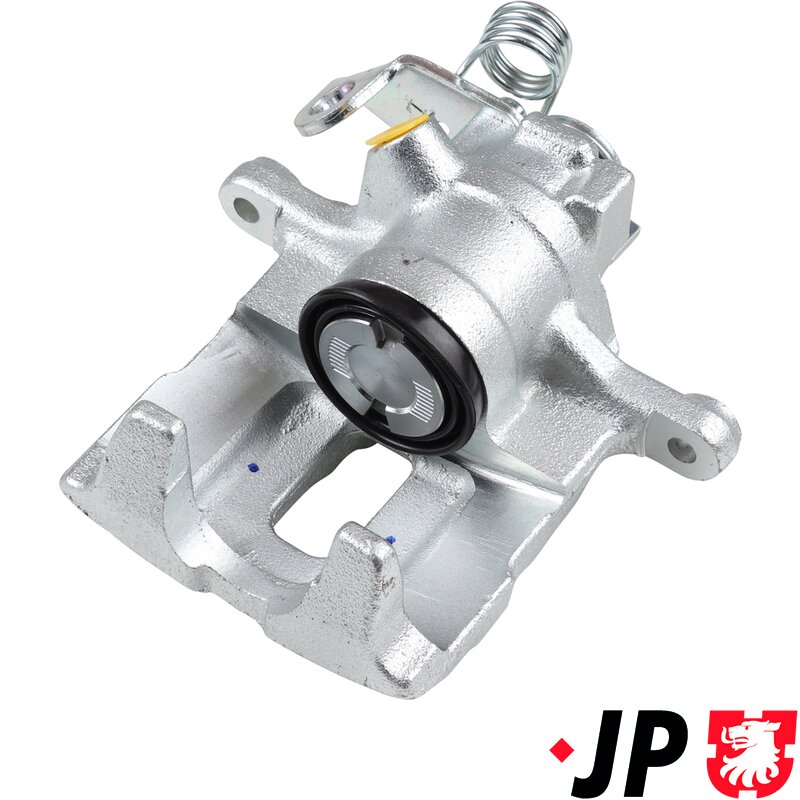

T4 Rear Brake Caliper (280mm Brake Discs) - 1996 - Left (Lucus)
Part Number: 701615423
£40.50 inc. VAT
In Stock at Warehouse 20-27 Day Delivery
Related Products
This rear brake caliper is a direct replacement for Volkswagen Transporter T4 Buses fitted with PR Code 2E2, covering vehicles built from May 1996 to November 1996, up to chassis number 70-V-120000.
Designed for the left-hand side (passenger side on RHD vehicles), this caliper is manufactured to suit the Lucas rear brake system and features an integrated mechanical handbrake mechanism, ensuring both service braking and parking brake functions operate correctly.
The caliper is designed to work with solid rear brake discs measuring 280mm diameter and 12mm thickness, as fitted to these specific T4 models. With a 38mm single piston, it delivers reliable clamping force while maintaining smooth, even pad wear.
As with all brake components, it is strongly recommended to replace rear brake calipers in pairs. Changing both sides at the same time helps prevent uneven braking, sticking pistons, and inconsistent handbrake operation.
How it works
When the brake pedal is pressed, hydraulic pressure forces the piston inside the caliper to clamp the brake pads against the disc, slowing the vehicle. The integrated handbrake mechanism mechanically operates the piston when the handbrake lever is applied, locking the rear wheels securely when parked.
Fitting & related parts
For best results, we recommend fitting this caliper alongside:
New rear brake pads
A matching right-hand rear brake caliper
Checked or renewed caliper carrier bolts
Properly adjusted handbrake cables
Always confirm PR Code 2E2, brake disc size, and chassis number before ordering.
Key Specifications
Fitting Position: Rear Axle Left (Passenger Side – RHD)
Brake Disc Type: Solid
For Brake Disc Diameter: 280mm
For Brake Disc Thickness: 12mm
Brake Caliper Type: Single piston
Piston Diameter: 38mm
Parking Brake: Integrated
Manufacturer Restriction: Lucas
PR Code: 2E2
Quantity: Sold individually
Vehicle Applications
VW Transporter T4 1.9–2.8 Petrol & Diesel
05/1996 – 11/1996
(Up to chassis number 70-V-120000)
This Part Fits: T4 Transporter
Availability: Special Order Item
Item Name: Brake Caliper
Description: Brake Caliper
Product Group: Brakes
Group: Braking System
Unit of Measure: Each
Manufacturer: JP
Dimensions:
Width: 160mm
Height: 191mm
Depth: 125mm
Volume: 3820000mm3
Weight: 2.515kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW | Bus/Transporter/Flatbed | T4 | 10/92 - 10/92 | 1,9 | Diesel | Van | 68 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 10/92 - 10/92 | 1,9 | Diesel | Bus | 68 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 10/92 - 10/92 | 1,9 | Diesel | Bus | 68 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 10/92 - 10/92 | 1,9 | Diesel | Bus | 68 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 10/92 - 10/92 | 1,9 | Diesel | Bus | 68 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 10/92 - 10/92 | 1,9 | Diesel | Platform/Chassis | 68 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 07/90 - 07/90 | 2,4 | Diesel | Van | 78 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/90 - 09/90 | 2,4 | Diesel | Bus | 78 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/90 - 09/90 | 2,4 | Diesel | Bus | 78 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/90 - 09/90 | 2,4 | Diesel | Bus | 78 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/90 - 09/90 | 2,4 | Diesel | Bus | 78 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/90 - 09/90 | 2,4 | Diesel | Platform/Chassis | 78 | - | -
|
| VW | Bus/Transporter/Flatbed | T4 | 10/92 - 10/92 | 2,4 | Diesel | Bus | 78 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 10/92 - 10/92 | 2,4 | Diesel | Bus | 78 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 10/92 - 10/92 | 2,4 | Diesel | Bus | 78 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 10/92 - 10/92 | 2,4 | Diesel | Platform/Chassis | 78 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 10/92 - 10/92 | 2,4 | Diesel | Van | 78 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 07/90 - 07/90 | 2,0 | Petrol | Platform/Chassis | 84 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 07/90 - 07/90 | 2,0 | Petrol | Van | 84 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/90 - 09/90 | 2,0 | Petrol | Bus | 84 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/90 - 09/90 | 2,0 | Petrol | Bus | 84 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/90 - 09/90 | 2,0 | Petrol | Bus | 84 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/90 - 09/90 | 2,0 | Petrol | Bus | 84 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/95 - 09/95 | 2,5 | Diesel | Van | 102 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/95 - 09/95 | 2,5 | Diesel | Platform/Chassis | 102 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/95 - 09/95 | 2,5 | Diesel | Bus | 102 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/95 - 09/95 | 2,5 | Diesel | Bus | 102 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/95 - 09/95 | 2,5 | Diesel | Bus | 102 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/95 - 09/95 | 2,5 | Diesel | Bus | 102 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 01/96 - 01/96 | 2,5 | Diesel | Bus | 102 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 01/96 - 01/96 | 2,5 | Diesel | Bus | 102 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/90 - 09/90 | 2,5 | Petrol | Bus | 110 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/90 - 09/90 | 2,5 | Petrol | Bus | 110 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/90 - 09/90 | 2,5 | Petrol | Bus | 110 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 09/90 - 09/90 | 2,5 | Petrol | Bus | 110 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 11/90 - 11/90 | 2,5 | Petrol | Platform/Chassis | 110 | - | -
|
| VW | Bus/Transporter/Flatbed | T4 | 11/90 - 11/90 | 2,5 | Petrol | Van | 110 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 08/92 - 08/92 | 2,5 | Petrol | Bus | 110 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 08/92 - 08/92 | 2,5 | Petrol | Bus | 110 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 08/92 - 08/92 | 2,5 | Petrol | Bus | 110 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 08/92 - 08/92 | 2,5 | Petrol | Bus | 110 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 11/92 - 11/92 | 2,5 | Petrol | Platform/Chassis | 110 | - | -
|
| VW | Bus/Transporter/Flatbed | T4 | 11/92 - 11/92 | 2,5 | Petrol | Van | 110 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 07/96 - 07/96 | 2,5 | Petrol | Bus | 115 | - | Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 08/96 - 08/96 | 2,5 | Petrol | Platform/Chassis | 115 | - | Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 08/96 - 08/96 | 2,5 | Petrol | Platform/Chassis | 115 | - | Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 08/96 - 08/96 | 2,5 | Petrol | Van | 115 | - | Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 08/96 - 08/96 | 2,5 | Petrol | Van | 115 | - | Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 08/96 - 08/96 | 2,5 | Petrol | Bus | 115 | - | Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 08/96 - 08/96 | 2,5 | Petrol | Bus | 115 | - | Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 08/96 - 08/96 | 2,5 | Petrol | Bus | 115 | - | Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 08/96 - 08/96 | 2,5 | Petrol | Bus | 115 | - | Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 11/95 - 11/95 | 2,8 | Petrol | Bus | 140 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 11/95 - 11/95 | 2,8 | Petrol | Bus | 140 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 11/95 - 11/95 | 2,8 | Petrol | Bus | 140 | - | Construction Year from 199605 Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 05/96 - 05/96 | 2,8 | Petrol | Van | 140 | - | Construction Year to 199611 |
| VW | Bus/Transporter/Flatbed | T4 | 05/96 - 05/96 | 2,8 | Petrol | Platform/Chassis | 140 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| HELLA | 8AC 355 383-411 |
| HELLA | 8AC355383411 |
| ATE | 24.3384-1717.5 |
| ATE | 24338417175 |
| AUDI | 701615423 |
| BOSCH | 0 986 474 834 |
| BOSCH | 0986474834 |
| TEXTAR | 38045300 |
| FTE | RX389830A0 |
| BREMBO | F 85 160 |
| BREMBO | F85160 |
| METZGER | 6250063 |
| SEAT | 701615423 |
| SKODA | 701615423 |
| TRISCAN | 8170 342820 |
| TRISCAN | 8170342820 |
| BUDWEG | 342820 |
| VW | 701615423 |
| NK | 2147137 |
| OPTIMAL | BC-1146L |
| MAPCO | 4896 |
| KAMOKA | JBC0277 |
| A.B.S. | 522061 |
| REMY | DC72820 |
| ELSTOCK | 860180 |
| ELSTOCK | 86-0180 |
| VAG | 701615423 |
| PATRON | PBRC017 |
| STELLOX | 0590037SX |
| STELLOX | 05-90037-SX |
| RIDEX | 78B0161 |
