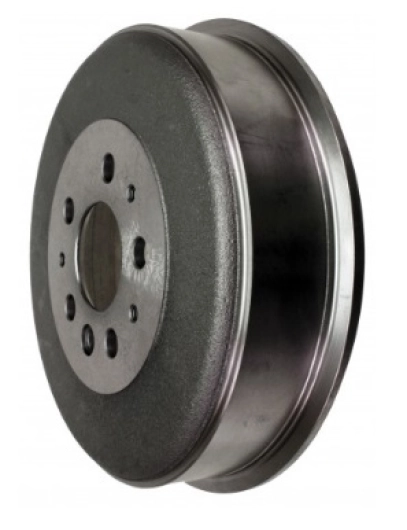

T4 Rear Brake Drum - 1990-95

This rear brake drum is a correct replacement for all Volkswagen Transporter T4 models from the start of production up to December 1995, up to chassis number 70T199000. Manufactured to original factory dimensions, it features a 268 mm braking diameter, 88 mm overall thickness, and a 68 mm internal drum height, ensuring proper fitment and reliable rear braking performance.

Finished with a protective coated surface, this drum offers improved corrosion resistance on non-friction areas, helping to extend service life and maintain a clean appearance during installation and use.

What this rear brake drum does

The rear brake drum provides the friction surface for the rear brake shoes. When braking, the shoes expand outward against the inside of the drum, generating friction that slows the vehicle. On T4 Transporters, rear brake drums are essential for load control, stability under braking, and effective handbrake operation—particularly important on vans used for carrying or towing.

How it works

As the rear wheels rotate, the brake drum turns with them. When hydraulic pressure is applied, the wheel cylinder forces the brake shoes outward so they contact the inner drum surface. This friction converts kinetic energy into heat, slowing the vehicle in a controlled and predictable manner.

The 268 mm diameter provides the correct braking leverage for early T4 rear drum systems, while the 68 mm internal height ensures correct shoe contact and adjustment. The robust 88 mm drum thickness contributes to durability under heavier vehicle loads.

Fitting notes & recommended additional parts

• Fitting position: Rear axle (left and right drums are identical)

• Stud / hole arrangement: 9/5 (5-stud hub with 9 mounting holes)

• Brake shoes: Always replace brake shoes when fitting new drums

• Wheel cylinders: Inspect for leaks or seizure and replace if required

• Fitting kits: New springs and adjusters are strongly recommended

• Brake drums: Supplied individually – replacing in axle pairs is strongly advised

Replacing rear drums and shoes together helps maintain balanced braking and consistent handbrake operation.

Vehicle compatibility

• Volkswagen Transporter T4

  • Engines: 1.8 / 2.0 / 2.4D / 2.5 / 2.8 (including diesel variants)

  • Model years: 09/1990 – 12/1995

  • Fitment limit: Up to chassis number 70T199000

Brake specification:

• Drum type: Rear brake drum

• Diameter: 268 mm

• Inner height: 68 mm

• Overall thickness: 88 mm

• Surface finish: Coated

• Hub pattern: 5-stud (9/5 arrangement)
