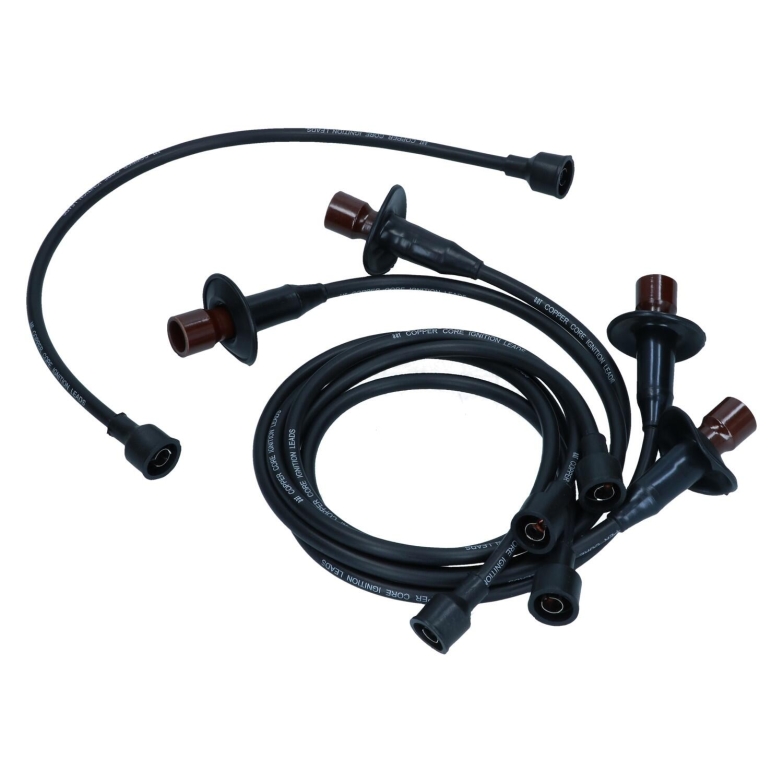

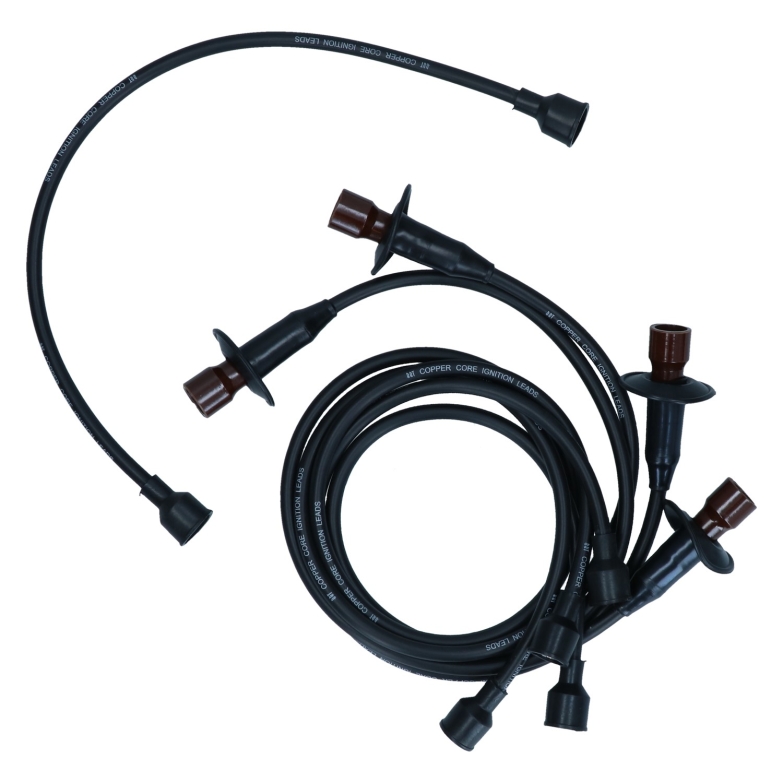

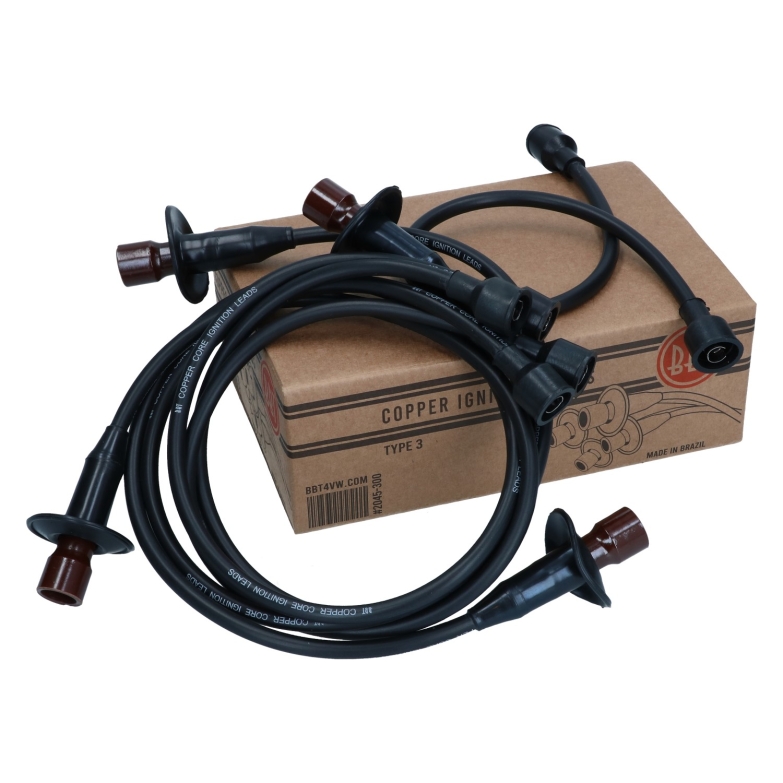

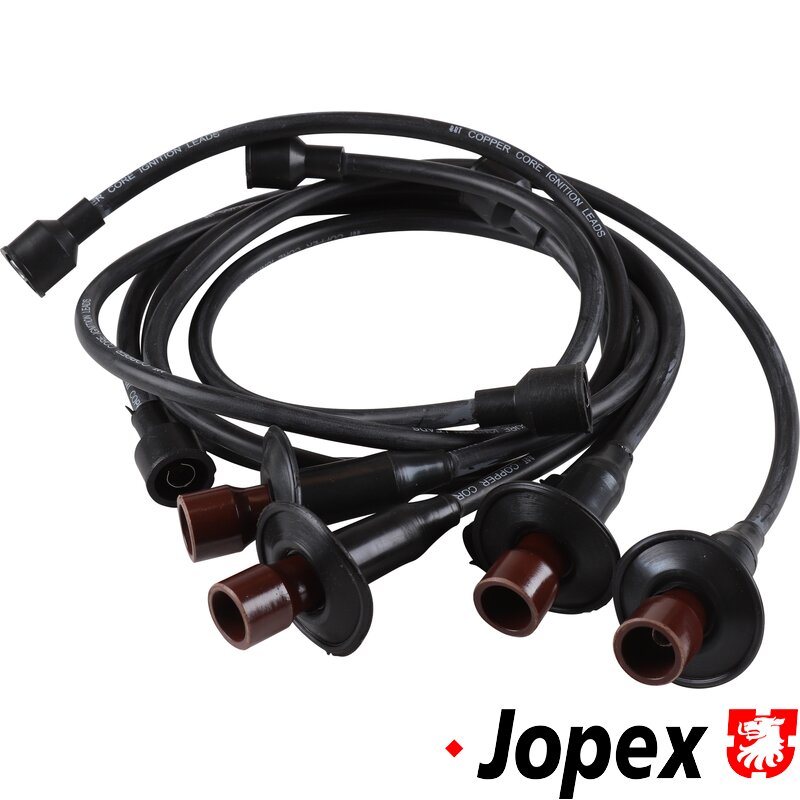

Black HT Lead Set - Type 3 Engines
Part Number: 311998031A
Good quality black Type 3 Engine HT Leads to fit all variant models up to 1967
Quality: Good quality
Quantity: Sold as a set of 5 leads which connect all the spark plugs to the distributor and then a smaller lead which connects the distributor to the ignition coil.
Fitment: In 1967/68 The Type 3 was fitted with a taller distributor. Therefore the HT leads were also changed to include 90 degree ends on the distibutor cap. Without these 90 degree ends the HT leads hit the top of the engine bay.
Applications:
VW Type 3: 1961 – 1967
This Part Fits: Type 3
Availability: Special Order Item
Item Name: Ignition cable set, copper core, black
Description: Ignition Cable Kit
Product Group: Electric
Group: Ignition System
Unit of Measure: Set
Manufacturer: JOPEX
Dimensions:
Width: 170mm
Height: 170mm
Depth: 50mm
Volume: 1445000mm3
Weight: 0.3kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW Classic | Type 3 (1500/1600) | Hatchback (31) | 07/68 - 07/68 | 1,5 | Petrol | Hatchback | 45 | - | -
|
| VW Classic | Type 3 (1500/1600) | Hatchback (31) | 08/65 - 08/65 | 1,6 | Petrol | Hatchback | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 04/61 - 04/61 | 1,5 | Petrol | Saloon | 45 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 07/64 - 07/64 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 08/63 - 08/63 | 1,5 | Petrol | Saloon | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 08/65 - 08/65 | 1,6 | Petrol | Saloon | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 08/65 - 08/65 | 1,6 | Petrol | Saloon | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Variant (36) | 04/61 - 04/61 | 1,5 | Petrol | Estate | 45 | - | -
|
| VW Classic | Type 3 (1500/1600) | Variant (36) | 08/63 - 08/63 | 1,5 | Petrol | Estate | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Variant (36) | 08/65 - 08/65 | 1,6 | Petrol | Estate | 54 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| VW | 311998031A |
| VAG | 311998031A |
FAQs
90 degree ends were fitted on a Type 3 from 1968 onwards. These straight ended versions are for Pre 1967 models only.
