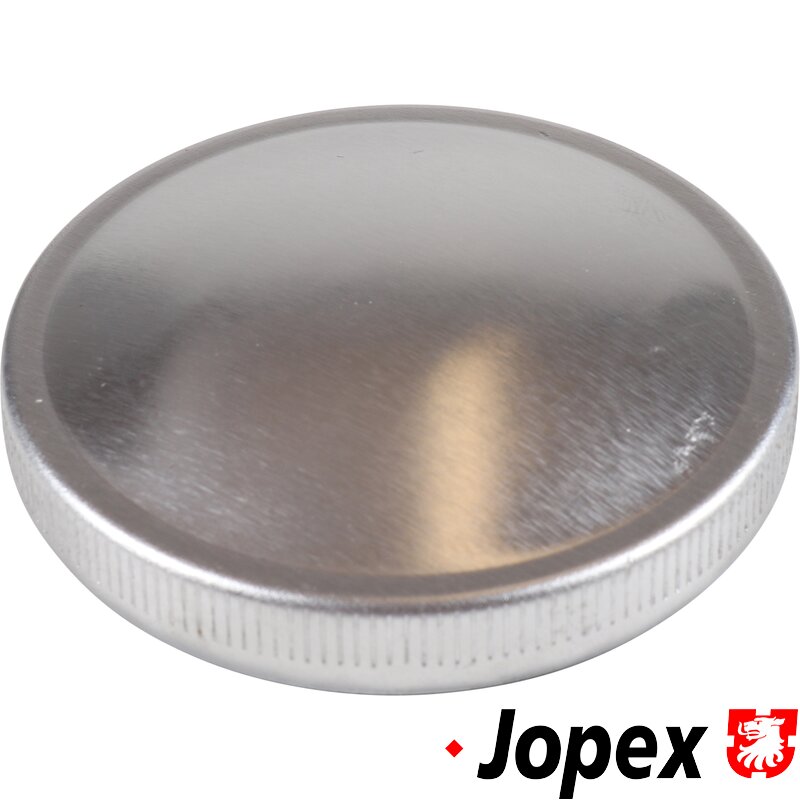

Splitscreen Bus Fuel Cap - 1955-67 (Also Fuel Cap For 111201075C Fuel Tank)

This fuel cap is a high-quality reproduction designed for Volkswagen Splitscreen Buses from 1955 to 1967 and Beetle reproduction fuel tanks from 1962 to 1967. It provides a snug, reliable seal to prevent fuel evaporation, leaks, and contamination, while maintaining the original vintage look of your VW.

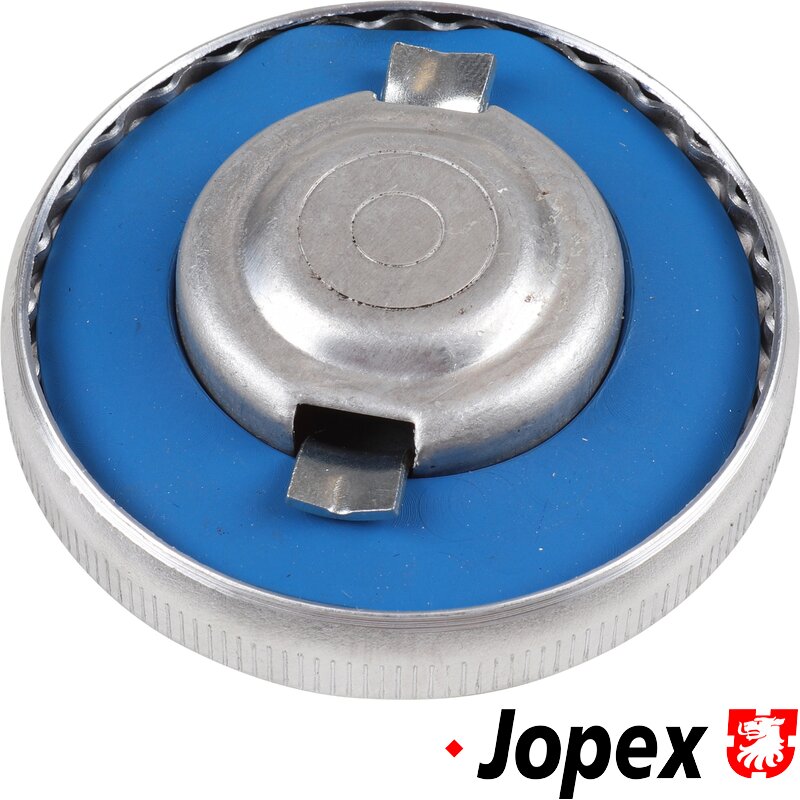

Manufactured to precise dimensions, this cap fits 60mm filler necks and locks internally against the tank lip — a system found on later-style Beetle reproduction tanks and all Splitscreen fuel tanks. It is particularly useful for vehicles fitted with aftermarket tanks that feature the internal locking mechanism rather than the original external tab design.

Constructed from durable materials and finished for longevity, this fuel cap ensures a proper fit and factory-style appearance for both restored and modified vehicles. It’s an ideal replacement part when refurbishing the fuel system or replacing a missing or worn cap.

Measurements:

• Diameter: 60mm

• Locking type: Internal locking system

Applications:

• VW Splitscreen Bus: 1955–1967

• VW Beetle: 1962–1967 (reproduction fuel tanks with internal lock system)

Fitting Notes:

• Will not fit original early Beetle tanks with external locking tabs.

• Suitable for reproduction or aftermarket tanks using an internal lock filler neck.
