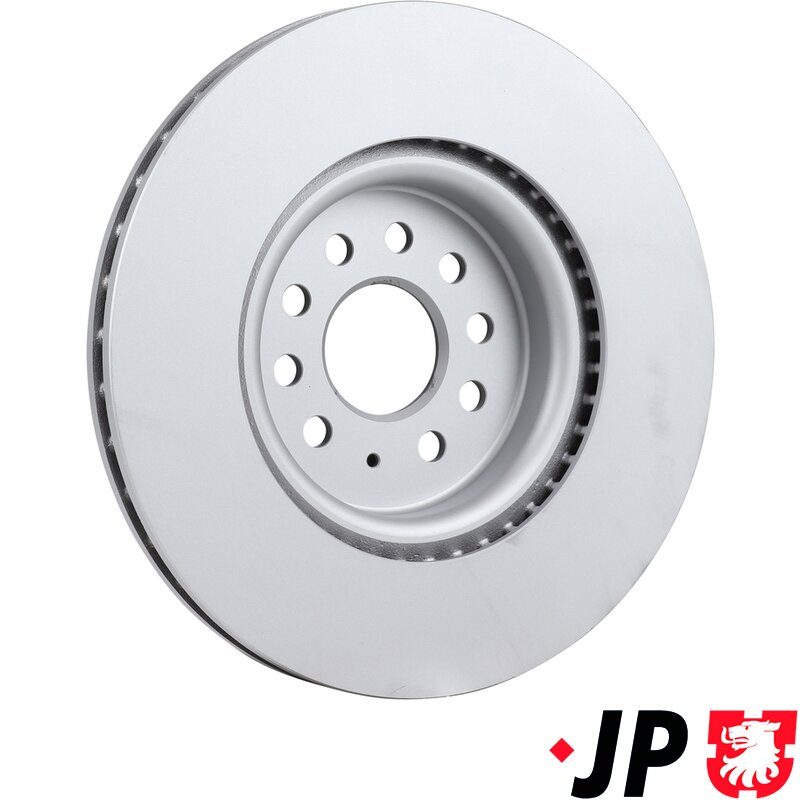

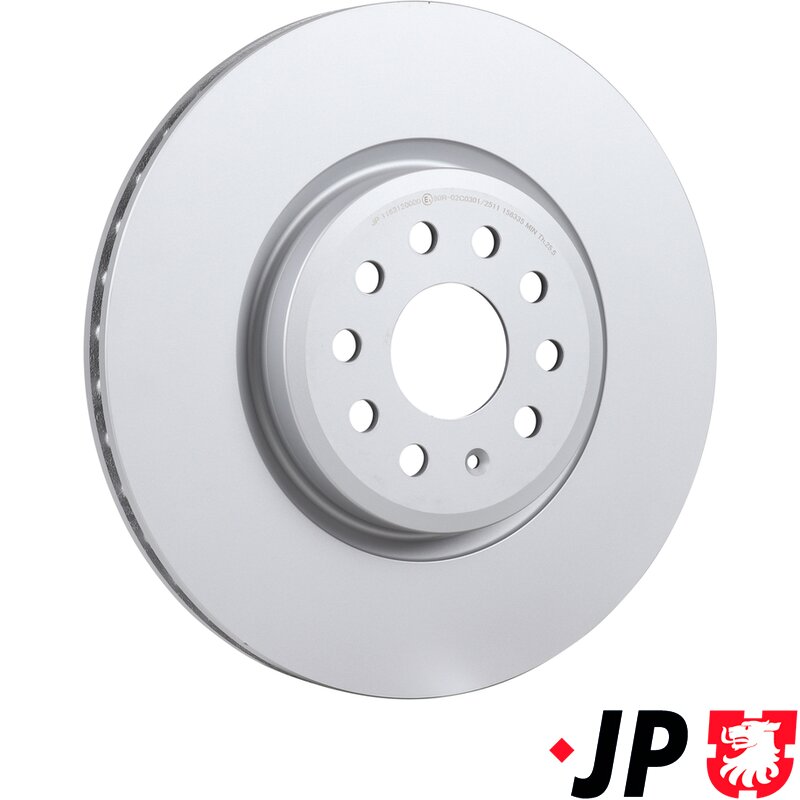

VW ID Front Brake Disc – 340mm Internally Vented (Coated)

This front brake disc is a high-quality replacement designed specifically for modern Volkswagen electric vehicles, including the VW ID.3, VW ID.4, VW ID.5, and VW ID.7 across multiple power outputs and production dates.

With an internally vented design, this disc is engineered to manage the increased weight and torque characteristics of electric vehicles. The internal ventilation channels allow air to flow through the disc during rotation, rapidly dispersing heat generated under braking. This helps prevent brake fade, reduces thermal stress, and maintains consistent braking performance even during repeated heavy stops or motorway driving.

The disc features a 27 mm thickness and a 340 mm outer diameter, providing a large braking surface for improved stopping power and pedal feel. The coated surface offers excellent corrosion resistance, protecting the disc from rust during storage, everyday driving, and periods of reduced brake use—common on EVs due to regenerative braking systems.

Manufactured to precise tolerances, this front brake disc ensures smooth, vibration-free braking and even pad wear. The 9-hole mounting design guarantees correct fitment to the front axle hub, maintaining factory alignment and braking balance.

How the Part Works

When you press the brake pedal, the brake caliper forces the pads against the disc’s friction surface. The rotating disc converts kinetic energy into heat through friction. The internal ventilation vanes draw cool air in and expel hot air outward, keeping operating temperatures under control. This is especially important on electric vehicles, where braking loads can be high despite reduced everyday pad usage from regenerative braking.

Fitting & Recommended Additional Parts

• Fitting Position: Front axle

• Recommended Replacement: Always replace brake discs in pairs to maintain even braking performance

• Strongly Recommended to Renew at the Same Time:

  • Front brake pads

  • Brake pad wear sensors (if fitted)

  • Caliper carrier bolts (single-use stretch bolts where applicable)

Professional installation is recommended to ensure correct torque settings and bedding-in of new components.

Key Specifications

• Brake Disc Type: Internally vented

• Surface Finish: Coated (anti-corrosion)

• Thickness: 27 mm

• Outer Diameter: 340 mm

• Number of Holes: 9

• Fitting Position: Front axle

Vehicle Compatibility

Compatible with multiple variants of VW ID electric models including different power outputs and production years, such as:

• VW ID.3 (from 06/2024 →)

• VW ID.4 (from 05/2020 → including 148 PS, 170 PS, 174 PS, 204 PS, 286 PS, 340 PS variants)

• VW ID.5 (from 07/2021 → including 170 PS, 174 PS, 204 PS, 286 PS, 299 PS, 340 PS variants)

• VW ID.7 Hatchback & Estate (from 06/2023 → including 286 PS and 340 PS variants)
