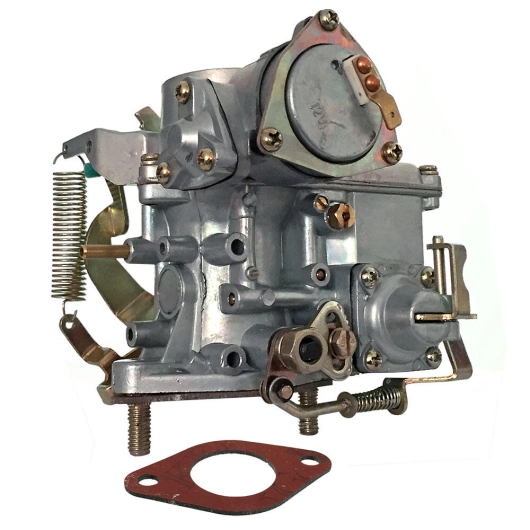

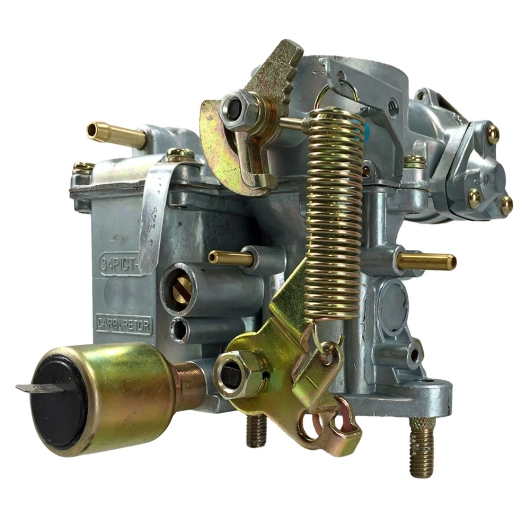

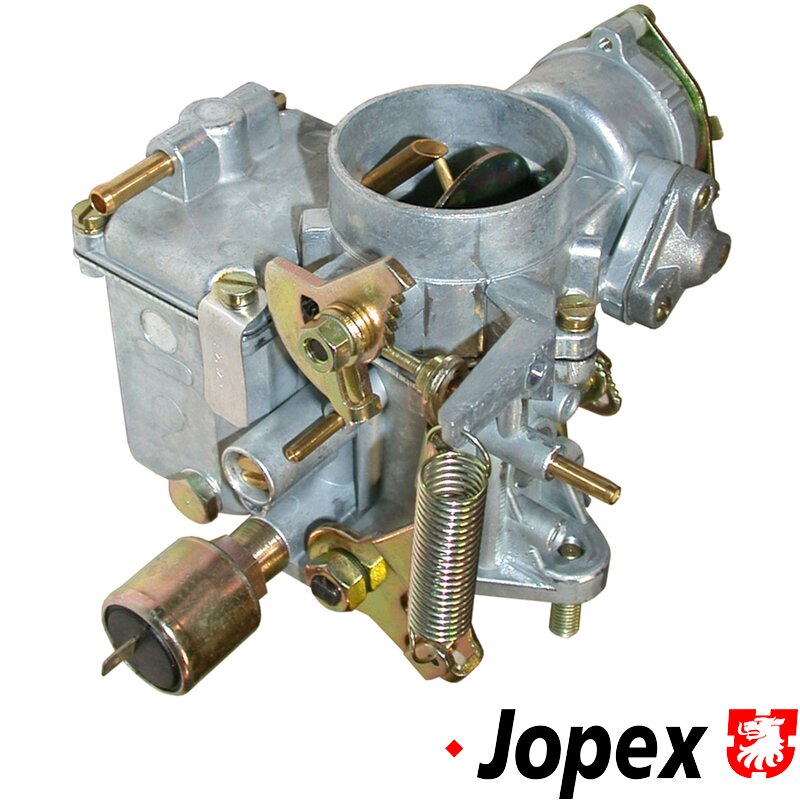

34 PICT-3 Carburettor - JOPEX

Restore performance and reliability to your classic VW with this standard 34 PICT 3 carburettor, designed for 1600cc twin port aircooled Type 1 engines. This carb is a better-quality reproduction than entry-level FORST units, offering improved machining and durability while still being a cost-effective solution. It is manufactured in China, but held to higher quality standards.

Supplied with the following jet sizes pre-installed:

• Idle Jet: 55

• Main Jet: 127

• Air Corrector Jet: 70

• Auxiliary Venturi: 26

Ideal for stock engines, this carburettor offers plug-and-play replacement for worn or faulty original units. It delivers smooth idling, consistent acceleration, and proper fuel metering when installed and jetted correctly.

Note: This carburettor does not include the base gasket. If needed, please see part number 113129707C.
Not suitable for 1600 CT code engines.

Specifications:

• Model: 34 PICT 3

• Jets Installed:
  • Idle Jet – 55
  • Main Jet – 127
  • Air Corrector Jet – 70
  • Auxiliary Venturi – 26

• Fitment: 1600cc twin port engines only

• Exclusions: Not for CT-code engines

• Quality: Better than entry-level FORST carburettors

• Quantity: Sold individually

Applications:

• VW Beetle: 1960 – 1979

• VW Splitscreen Van: 1960 – 1967

• VW Baywindow Van: 1968 – 1979

• VW Karmann Ghia: 1960 – 1974

• VW Trekker / Type 181: 1968 – 1983

• VW Buggy & Baja: 1960 – 1979
