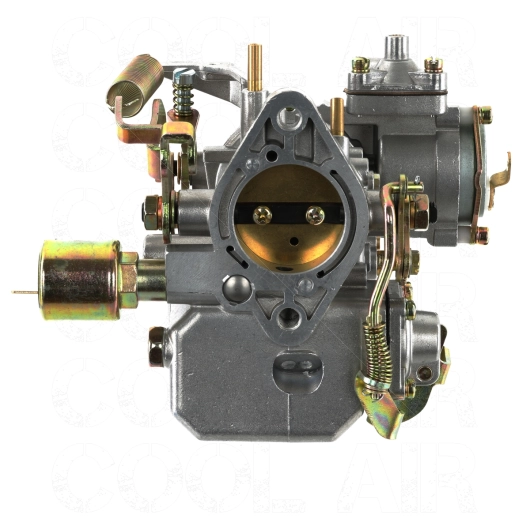

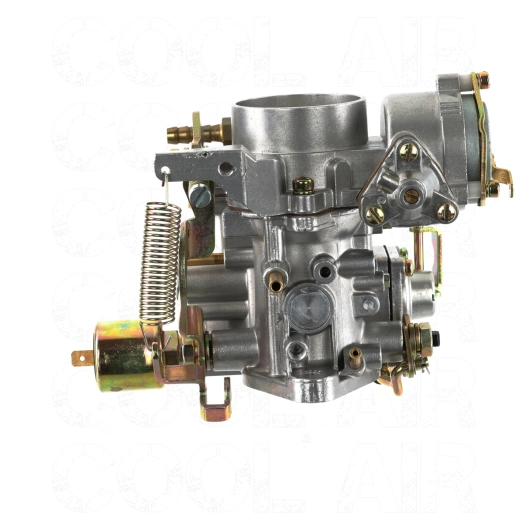

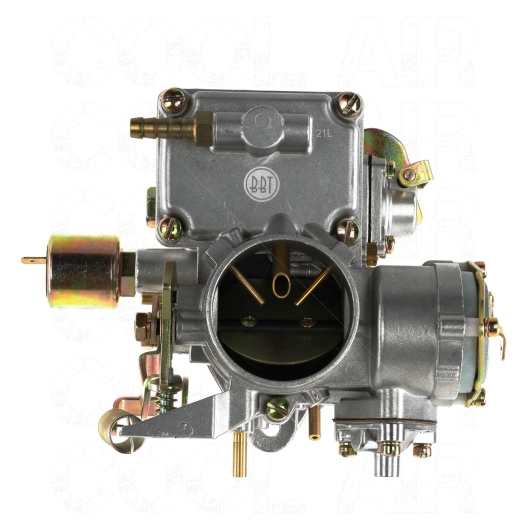

37 PICT Big Bore Carburettor

Looking for a simple, effective performance upgrade without jumping into a full twin-carb setup? The Big Bore 37 PICT carburettor offers excellent value and a noticeable increase in torque and throttle response for 1600cc to 1776cc twin port engines.

This upgraded carb is a direct bolt-on replacement for the standard 34 PICT 3, and is ideally suited for mildly tuned engines used in street-driven VWs. With a larger venturi and main jet, the 37 PICT delivers increased airflow and fuel volume, making it perfect for those who want a bit more “go” without sacrificing drivability or simplicity.

Pre-jetted with the following specs for immediate installation and tuning:

• Idle Jet: 55

• Main Jet: 132

• Air Corrector Jet: 70

• Auxiliary Venturi: 28

It fits directly to any standard 1600cc twin port manifold with no modification required.
For larger engines (1776cc to 1835cc), see our Big Bore 39 PICT version under part number 113129031KBB39.

Specifications:

• Model: 37 PICT

• Venturi Size: 28mm

• Throttle Bore: Larger than stock

• Recommended Engine Size: 1600cc – 1776cc

• Jets Installed: 55 / 132 / 70

• Fitment: Standard twin port intake manifold

• Quality: Reproduction

• Quantity: Sold individually

Applications:

• VW Beetle: 1960 – 1979

• VW Splitscreen Van: 1960 – 1967

• VW Baywindow Van: 1968 – 1979

• VW Karmann Ghia: 1960 – 1974

• VW Trekker: 1968 – 1983

• VW Buggy & Baja: 1960 – 1979
