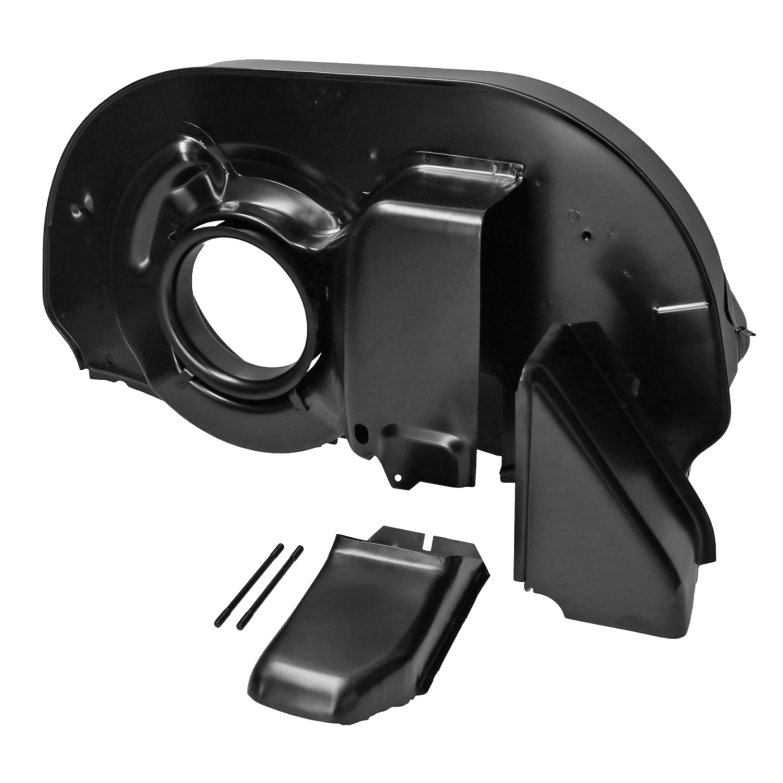

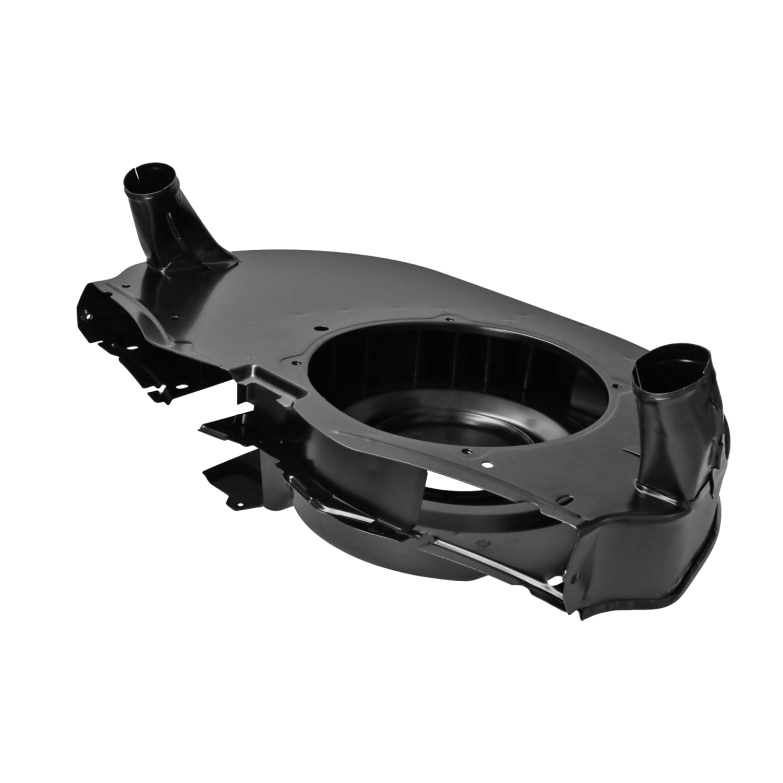

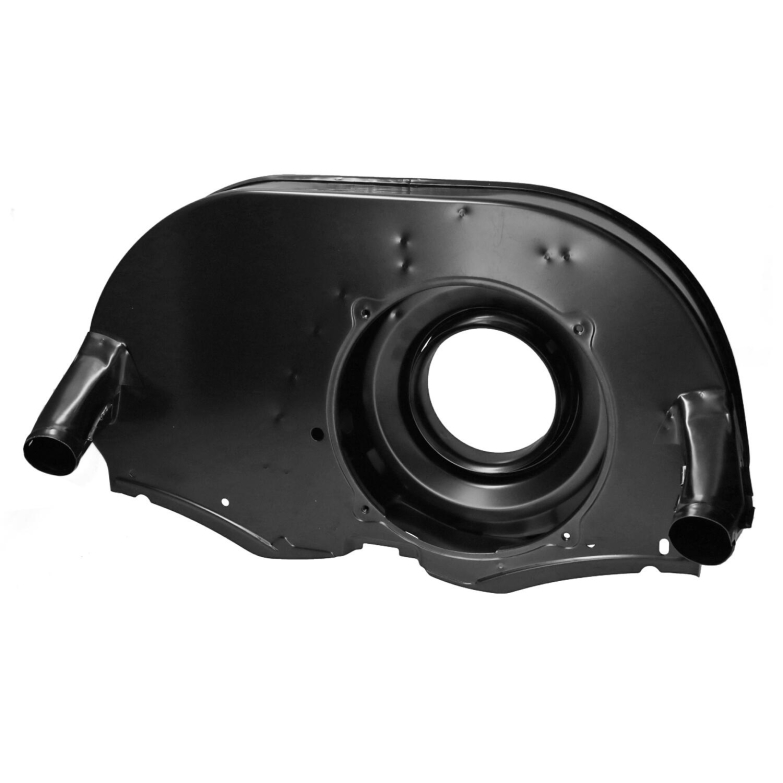

OE Style Black Twin Port Fanshroud With Air Outlets - For Type 4 Oil Cooler Fitment

Enhance the cooling performance and factory look of your classic VW engine with this black OE-style twin port “Doghouse” fan shroud, designed for 1300cc, 1500cc, and 1600cc air-cooled engines.

This version includes air outlet holes for heater hoses, making it ideal for vehicles equipped with heat exchangers and requiring cabin heating. The shroud also features the larger ‘Doghouse’ section, engineered to accommodate the Type 4-style oil cooler, significantly improving oil cooling efficiency and overall engine longevity — a must-have upgrade for long-distance drivers and high-temperature climates.

Built to original specifications, this fan shroud maintains proper air distribution to all cylinders while providing reliable heat output. Constructed from high-quality steel and finished in durable black paint, it offers both performance and authenticity for any restoration or engine rebuild project.

Please note: there are two different crankcase seam widths used across VW engines. This fan shroud is made for the narrower 33 mm crankcase seam (the most common version). If your crankcase has the wider 38 mm seam, you’ll need to slightly widen the recess in the fan shroud to ensure a precise fit.

Key Features:

• OE-style twin port fan shroud in black with heater outlets

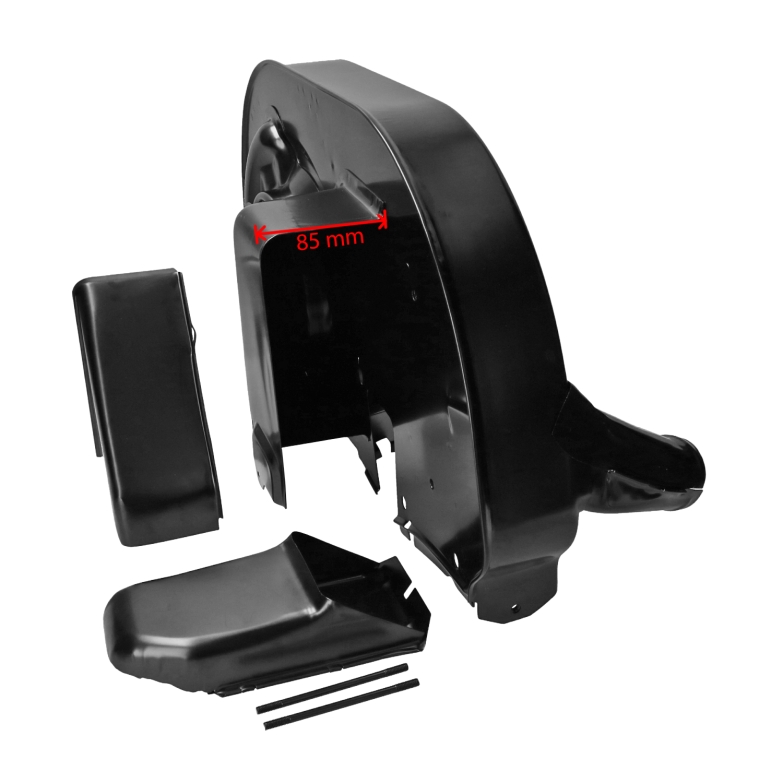

• Features larger “Doghouse” section to fit Type 4 oil cooler for improved cooling
• Fits 1300cc, 1500cc, and 1600cc air-cooled engines
• Correct air outlet holes for vehicles with heat exchangers and heating systems
• Optimised airflow for maximum engine and oil cooling
• Designed for 33 mm crankcase seam (modify slightly for 38 mm version)
• Precision-stamped steel construction with durable painted finish
• Direct replacement for factory fan shroud — no modifications needed (except as noted)

Applications:

• VW Beetle (1300–1600cc) 1966–1979
• VW Karmann Ghia (1300–1600cc) 1966–1974
• VW Type 2 Splitscreen (1500–1600cc) 1963–1967
• VW Type 2 Bay Window (1600cc) 1968–1979
• VW Type 3 (1500–1600cc) 1963–1973
• VW Buggy & Baja (1300–1600cc engines)

Specification:

• Material: Steel
• Finish: Black painted
• Configuration: Twin port with heater outlets
• Cooling Type: Doghouse (for Type 4 oil cooler)
• Crankcase Compatibility: 33 mm seam (38 mm requires minor trimming)
