G3 Water Flange (Water Pump To Radiator Hose) - 1.6, 1.8, 2.0, 1.9 Diesel

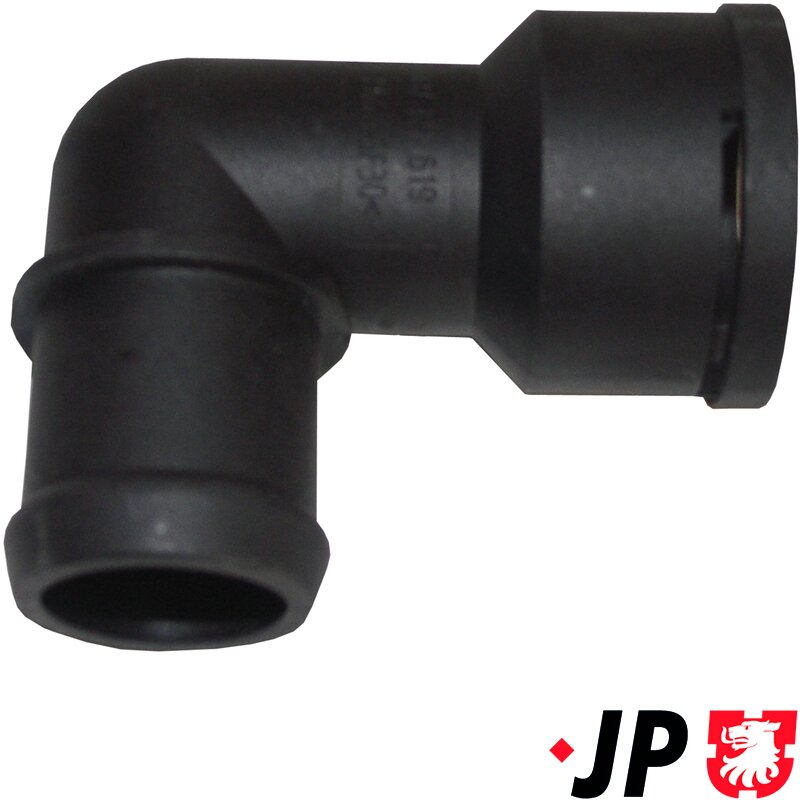

This coolant flange is fitted in the lower position on the engine, connecting the water pump outlet to the lower radiator hose. It forms part of the main coolant circulation system, allowing coolant to flow from the engine through the radiator and back into the cooling system. This flange is supplied with the O-ring seal, and the retaining clip for the hose connection is available separately under part number 037121142A.

The flange plays an important role in maintaining correct coolant circulation. Coolant leaves the engine via the water pump, passes through this flange and into the radiator hose, where it is cooled before returning to the engine. If this flange becomes cracked, warped, or the O-ring fails, coolant leaks can occur, often showing as a drip from the lower engine area or radiator hose connection. Replacing this flange ensures a proper seal and reliable cooling system operation.

This flange is used across a wide range of petrol and diesel engines, making it a very common service item on Golf Mk3, Polo 6N, Vento and related models. When replacing, it is recommended to inspect the radiator hose, retaining clip, and O-ring seal to ensure a leak-free installation.

Fits the following vehicles:

VW Golf Mk3 Hatchback & Estate
1991–1999: 1.6, 1.8, 2.0 petrol, 1.9 diesel

VW Golf Mk3 Cabriolet / Golf Mk4 Cabriolet
1994–2002: 1.6, 1.8, 2.0 petrol, 1.9 diesel

VW Vento
1991–1998: 1.6, 1.8, 2.0 petrol, 1.9 diesel

VW Polo Mk3 6N Hatchback, Estate & Polo Classic 6V2 Saloon
1995–2002: 1.6 petrol, 1.8 petrol, 1.7 diesel, 1.9 diesel

VW Caddy Mk2
1995–2004: 1.6 petrol, 1.7 diesel, 1.9 diesel

VW Sharan
1995–2010: 1.9 diesel, 2.0 petrol

Engine codes include:
1F, AAM, ACC, ADD, ADZ, AFT, AGG, AKR, AKS, ADC, AEP, ABF, 1Y, AAZ, AEY, AFN, AHU, ALE, AWF, AWG, AKW, 1Z
