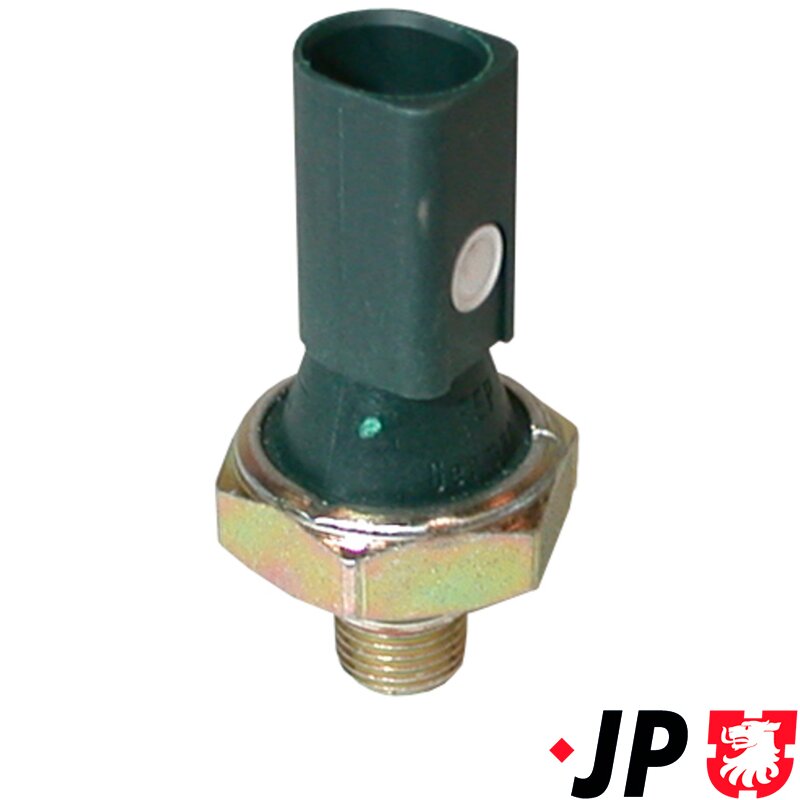

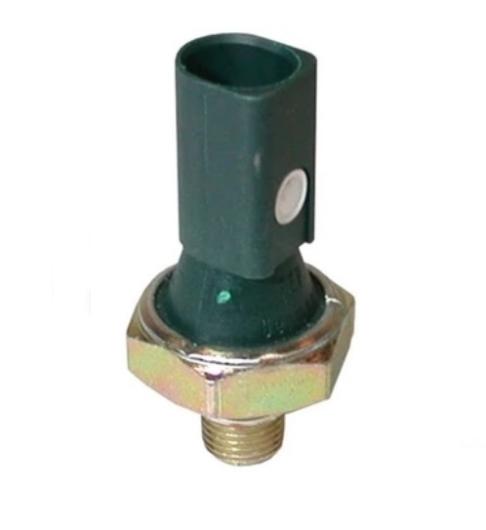

T5,T6 Oil Pressure Switch - Green - 2.0 TDI (CAAA,CAAB,CAAC,CAAE,CFCA)

Green oil pressure switch with 0.3–0.6 bar switch point, designed to monitor engine oil pressure and trigger the dashboard warning light if pressure drops below specification.

This 1-pin switch features an M10 x 1 thread and 22mm hex, making it a direct replacement for factory fitted units on a wide range of VW petrol and diesel engines. The green colour coding identifies the 0.3–0.6 bar pressure range, commonly used on 2.0 TDI engines and various petrol applications.

A faulty oil pressure switch can cause intermittent oil warning lights, false low-pressure warnings, oil leaks from the sensor body, or failure of the warning system to activate. Replacing the switch ensures accurate monitoring and protects against potential engine damage.

Manufactured to OE specification for reliable performance and long service life.

Technical Specifications

  • Switch point: 0.3–0.6 Bar

  • Colour: Green

  • Thread size: M10 x 1

  • Spanner size: 22mm

  • Connection: 1 pin


Engine & Vehicle Fitment

T5 / T6 – 2.0 TDI

Engine codes: CAAA, CAAB, CAAC, CAAE, CFCA
2009–2020

Mk4 Golf – 1.4 & 1.6 Petrol (incl. 16V)

Engine codes: BAD, AHQ, AZD, BCB, BCA

Also fits multiple applications including selected:

  • Amarok 2.0 TDI

  • T6 Transporter / Multivan / California 2.0 TDI

  • Caddy III & IV 2.0 TDI

  • Golf IV 1.4 / 1.6

  • Bora 1.4 / 1.6

  • New Beetle 1.4

  • Eos 1.4 / 1.6

  • Touran 1.4 / 1.6

(Always confirm engine code and pressure rating before ordering.)

This Part Fits: T5 Transporter, T6 Transporter, Mk4 Golf,

Availability: Stock Item

Item Name: Oil Pressure Switch

Description: Oil Pressure Switch

Product Group: Electric

Group: Lubrication

Unit of Measure: Each

Manufacturer: JP

Dimensions:

Width: 80mm

Height: 147mm

Depth: 70mm

Volume: 823200mm3

Weight: 0.035kg
