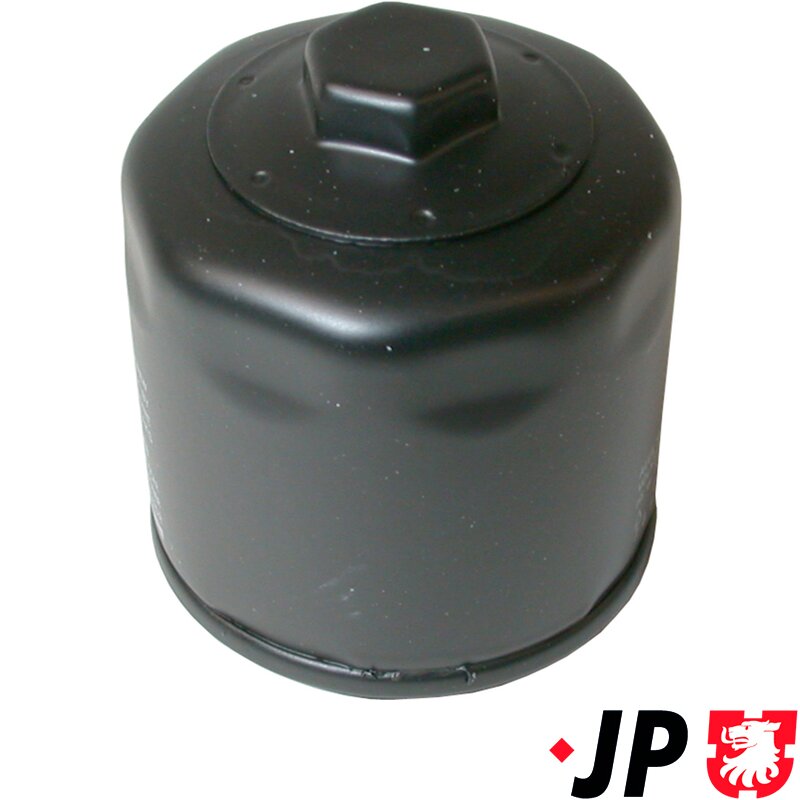

Brazilian Baywindow Oil Filter - Watercooled Models

This short-style spin-on oil filter is a high-quality replacement for a wide range of small-capacity Volkswagen water-cooled engines from the early 1990s through to the mid-2000s, including the Brazil-built Kombi 1.4/1.6 water-cooled models. Designed to match OEM flow and filtration performance, this filter ensures clean, stable lubrication for engines from 1.0 to 1.6 litres, including both 8-valve and 16-valve variants.

The compact “short” design makes it ideal for tight engine bays and improves clearance around exhaust manifolds and driveshafts, especially on Polo and early Mk3/Mk4 Golf engines. Inside, the filter uses a high-capacity pleated media to trap fine particles and sludge, supporting long engine life and stable oil pressure. An anti-return (anti-drain-back) valve prevents oil draining from the filter when the engine is switched off, reducing wear during cold starts.

This filter is suitable for a huge list of VW petrol engines—1.0, 1.3, 1.4, 1.6 plus the 1.4D—across multiple model ranges. It threads directly into place with no modification required.

Technical Specification

• Filter Type: Spin-on

• Height: 92mm

• Outer Diameter: 76mm

• Inner Diameter 1: 62mm

• Inner Diameter 2: 71mm

• Includes Anti-Return Valve: Yes

Suitable Engine Codes

(Extensive compatibility list—examples include:)
1.0–1.6 Petrol & 1.4 Diesel engines:
HZ, 2G, NZ, ABD, ABU, AEA, AEE, AHW, AKQ, APE, APQ, ATN, AUS, AXP, AZD, BAD, BCA, BCB, 1W (1.4D), 3F, AAU, AAV, ACM, ADX, AER, AEV, AFH, AFK, AJV, AKK, AKP, AKV, ALD, ALL, ANX, AQQ, ARC, AUA, AUB, AUC, AUD, AVY, PY, AEX

Confirmed Vehicle Fitment

Brazil Kombi (Water-cooled)

• 1997–2014 – 1.4 & 1.6 petrol

VW Golf Mk3 (1992–1998)

• 1.4 / 1.6

VW Golf Mk3 Cabrio (1994–2002)

• 1.4 / 1.6

VW Golf Mk4 (1998–2006)

• 1.4 / 1.6

VW Polo

• Mk1/Mk2 (1991–1994): 1.0–1.6

• Mk3 6N (1995–2002): 1.0–1.6 / 1.4D

VW Vento (1992–1998)

• 1.4 / 1.6

This is the ideal replacement filter when servicing classic 90s–2000s small-capacity VW engines, ensuring correct oil pressure, clean lubrication, and long-term reliability.
