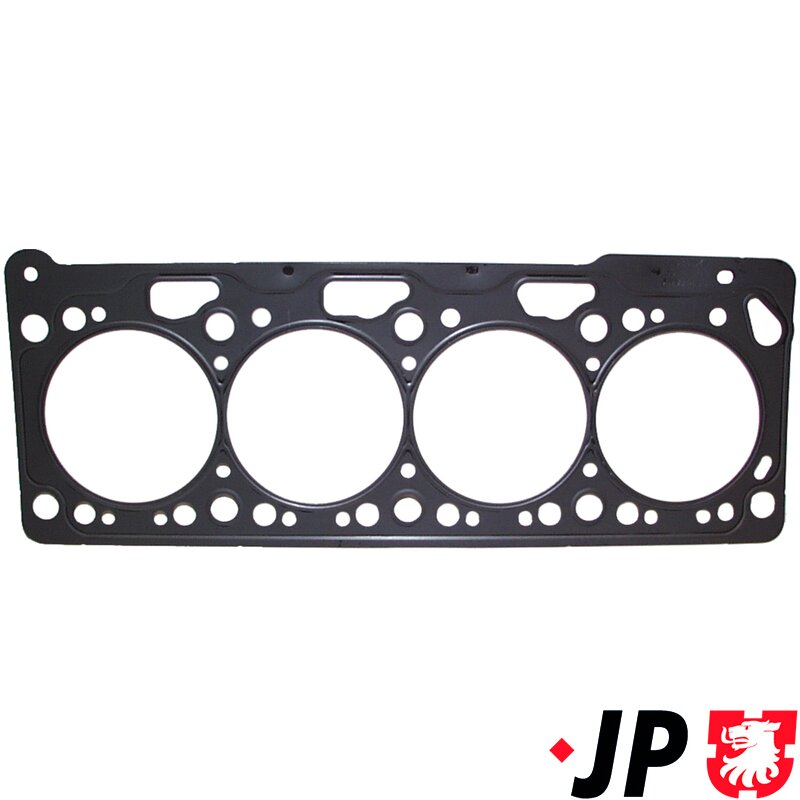

G3 Cylinder Head Gasket - 1.4 (AEX,APQ), 1.6 (AEA,AEE)
Part Number: 030103383AH
This high-quality cylinder head gasket is specifically engineered for Volkswagen Golf Mk3 models fitted with 1.4 and 1.6 petrol engines using the AEX, APQ, AEA, and AEE engine codes. The cylinder head gasket is a crucial component that sits between the engine block and the cylinder head, providing a reliable seal that prevents combustion gases from escaping and coolant or oil from leaking into the cylinders.
Manufactured to OEM specifications, this gasket ensures perfect fitment and durability under high temperature and pressure conditions. It maintains optimal compression and supports efficient engine performance, helping to prevent issues such as overheating, loss of power, or engine damage caused by head gasket failure.
Installation of this gasket typically requires the removal of the cylinder head, so it is strongly recommended to replace head bolts at the same time, as these are torque-to-yield and may stretch after use. A full cylinder head gasket set may also be considered to replace all associated seals and gaskets during the process.
This Part Fits: Mk3 Golf
Availability: Special Order Item
Item Name: Gasket, cylinder head
Description: Gasket, cylinder head
Product Group: Engine
Group: Cylinder Head
Unit of Measure: Each
Manufacturer: JP
Dimensions:
Width: 170mm
Height: 450mm
Depth: 15mm
Volume: 1147500mm3
Weight: 0.164kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| Seat | Arosa | Arosa | 05/97 - 05/97 | 1,4 | Petrol | Hatchback | 60 | - | Engine Code AEX;AKV;APQ |
| Seat | Cordoba | Cordoba (6K) | 12/97 - 12/97 | 1,4 | Petrol | Saloon | 54 | - | -
|
| Seat | Cordoba | Cordoba (6K) | 06/94 - 06/94 | 1,4 | Petrol | Saloon | 60 | - | Engine Code AEX;AKV;APQ |
| Seat | Cordoba | Cordoba (6K) | 09/96 - 09/96 | 1,4 | Petrol | Estate | 60 | - | Engine Code AEX;AKV;APQ |
| Seat | Cordoba | Cordoba (6K) | 02/93 - 02/93 | 1,6 | Petrol | Saloon | 75 | - | Engine Code AEE;ALM |
| Seat | Cordoba | Cordoba (6K) | 09/96 - 09/96 | 1,6 | Petrol | Estate | 75 | - | Engine Code AEE;ALM |
| Seat | Ibiza | Ibiza (6K) | 12/97 - 12/97 | 1,4 | Petrol | Hatchback | 54 | - | -
|
| Seat | Ibiza | Ibiza (6K) | 09/93 - 09/93 | 1,4 | Petrol | Hatchback | 60 | - | Engine Code AEX;AKV;APQ |
| Seat | Ibiza | Ibiza (6K) | 03/93 - 03/93 | 1,6 | Petrol | Hatchback | 75 | - | Engine Code AEE;ALM |
| Seat | Inca | Inca | 11/95 - 11/95 | 1,4 | Petrol | Estate Van | 60 | - | Engine Code AEX;AKV;APQ |
| Seat | Inca | Inca | 06/97 - 06/97 | 1,6 | Petrol | Estate Van | 75 | - | -
|
| Skoda | Felicia | Felicia I | 08/95 - 08/95 | 1,6 | Petrol | Estate | 75 | - | -
|
| Skoda | Felicia | Felicia I | 08/95 - 08/95 | 1,6 | Petrol | Hatchback | 75 | - | -
|
| Skoda | Felicia | Felicia I | 06/97 - 06/97 | 1,6 | Petrol | Pickup | 75 | - | -
|
| Skoda | Felicia | Felicia II | 01/98 - 01/98 | 1,6 | Petrol | Hatchback | 75 | - | -
|
| Skoda | Felicia | Felicia II | 01/98 - 01/98 | 1,6 | Petrol | Estate | 75 | - | -
|
| Skoda | Felicia | Felicia II | 06/98 - 06/98 | 1,6 | Petrol | Estate Van | 75 | - | -
|
| Skoda | Octavia | Octavia (1U) | 09/96 - 09/96 | 1,6 | Petrol | Hatchback | 75 | - | -
|
| Skoda | Octavia | Octavia (1U) | 07/98 - 07/98 | 1,6 | Petrol | Estate | 75 | - | -
|
| VW | Caddy | Caddy II | 11/95 - 11/95 | 1,4 | Petrol | Box Body/MPV | 60 | - | Engine Code AEX;APQ |
| VW | Caddy | Caddy II | 11/95 - 11/95 | 1,4 | Petrol | MPV | 60 | - | Engine Code AEX;AKV;APQ |
| VW | Caddy | Caddy II | 11/95 - 11/95 | 1,6 | Petrol | Box Body/MPV | 75 | - | -
|
| VW | Caddy | Caddy II | 06/96 - 06/96 | 1,6 | Petrol | Pickup | 75 | - | -
|
| VW | Caddy | Caddy II | 06/97 - 06/97 | 1,6 | Petrol | MPV | 75 | - | -
|
| VW | Golf | Golf III | 11/91 - 11/91 | 1,4 | Petrol | Hatchback | 55 | - | Engine Code AEX |
| VW | Golf | Golf III | 07/93 - 07/93 | 1,4 | Petrol | Estate | 55 | - | Engine Code AEX |
| VW | Golf | Golf III | 08/91 - 08/91 | 1,4 | Petrol | Hatchback Van | 60 | - | Engine Code AEX |
| VW | Golf | Golf III | 10/91 - 10/91 | 1,4 | Petrol | Hatchback | 60 | - | Engine Code AEX |
| VW | Golf | Golf III | 05/93 - 05/93 | 1,4 | Petrol | Estate Van | 60 | - | Engine Code AEX |
| VW | Golf | Golf III | 07/93 - 07/93 | 1,4 | Petrol | Estate | 60 | - | Engine Code AEX;APQ |
| VW | Golf | Golf III | 09/92 - 09/92 | 1,6 | Petrol | Hatchback | 75 | - | Engine Code AEA;AEE |
| VW | Polo | Polo (6N) | 10/99 - 10/99 | 1,4 | Petrol | Hatchback | 54 | - | Engine Code ANX |
| VW | Polo | Polo (6N) | 10/94 - 10/94 | 1,3 | Petrol | Hatchback | 55 | - | -
|
| VW | Polo | Polo (6N) | 08/95 - 08/95 | 1,4 | Petrol | Hatchback | 55 | - | -
|
| VW | Polo | Polo (6N) | 07/95 - 07/95 | 1,4 | Petrol | Hatchback | 60 | - | -
|
| VW | Polo | Polo (6N) | 10/94 - 10/94 | 1,6 | Petrol | Hatchback | 75 | - | -
|
| VW | Polo | Polo (6N) | 08/95 - 08/95 | 1,6 | Petrol | Hatchback | 75 | - | -
|
| VW | Polo | Polo Classic (6V2) | 01/98 - 01/98 | 1,4 | Petrol | Saloon | 54 | - | -
|
| VW | Polo | Polo Classic (6V2) | 12/95 - 12/95 | 1,4 | Petrol | Saloon | 60 | - | Engine Code AEX;AKV;APQ |
| VW | Polo | Polo Classic (6V2) | 11/95 - 11/95 | 1,6 | Petrol | Saloon | 75 | - | -
|
| VW | Vento | Vento | 11/91 - 11/91 | 1,4 | Petrol | Saloon | 55 | - | Engine Code AEX |
| VW | Vento | Vento | 11/91 - 11/91 | 1,4 | Petrol | Saloon | 60 | - | Engine Code AEX |
| VW | Vento | Vento | 09/92 - 09/92 | 1,6 | Petrol | Saloon | 75 | - | Engine Code AEA;AEE |
| VW | POLO Variant (6V5) | 01/98 - 01/98 | 1,4 | Petrol | Estate | 54 | - | -
| |
| VW | POLO Variant (6V5) | 05/97 - 05/97 | 1,6 | Petrol | Estate | 75 | - | -
| |
| VW | POLO Variant (6V5) | 05/97 - 05/97 | 1,4 | Petrol | Estate | 60 | - | Engine Code AKV;APQ | |
| VW | POLO Variant (6V5) | 05/97 - 05/97 | 1,4 | Petrol | Estate | 60 | - | Engine Code AEX | |
| VW | POLO Van Estate Van (6V5) | 08/97 - 08/97 | 1,4 | Petrol | Estate Van | 60 | - | -
| |
| VW | POLO Van Estate Van (6V5) | 09/97 - 09/97 | 1,6 | Petrol | Estate Van | 75 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| REINZ | 613197000 |
| ELRING | 621082 |
| FEBI BILSTEIN | 26952 |
| SEAT | 030103383AH |
| SKODA | 030103383AH |
| VW | 030103383AH |
| SWAG | 30926952 |
| ELWIS ROYAL | 0056034 |
| VAG | 030103383AH |
| TOPRAN | 100539 |
| AUTOMEGA | 190023610 |
| JPGROUP | 103060001 |
