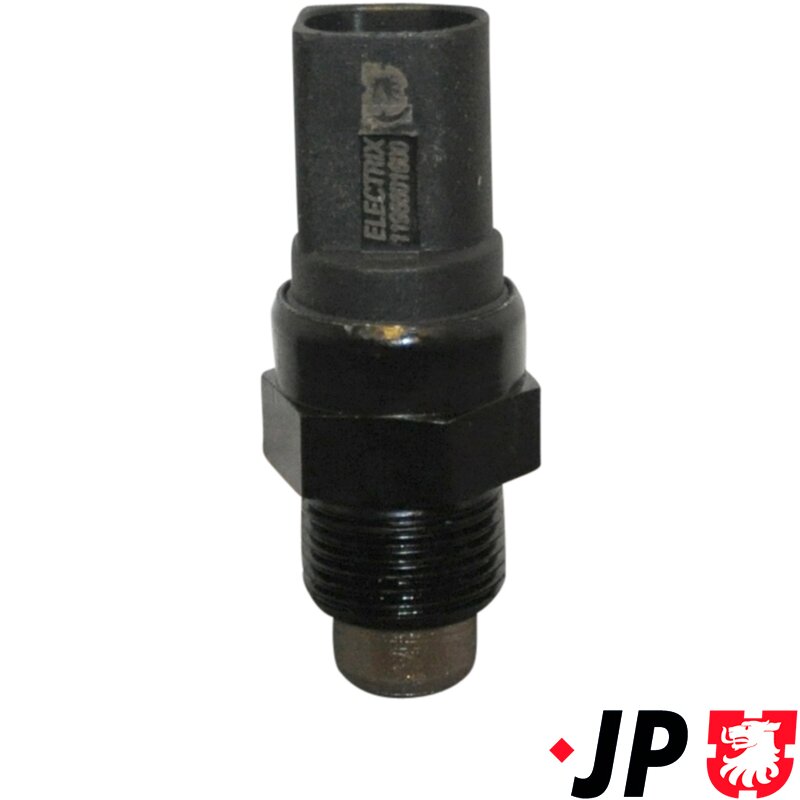

T5,T6,G3,G4 Reversing Light Switch - 5 Speed (2 Terminal)

This 2-pin reversing light switch is fitted to a wide range of Volkswagen 5-speed manual transmissions, where it activates the reverse lights when reverse gear is selected. The switch is mounted directly into the gearbox casing and completes the electrical circuit as the selector mechanism engages reverse.

Failure of the reverse light switch is common and typically results in no reversing lights, intermittent operation, or lights that only work when the gear lever is held in a specific position. Replacing the switch restores correct and reliable reverse light function and is often required for MOT compliance.

Manufactured to original specification, this switch features the correct M20 x 1.5 thread, 2-pin electrical connector, and sealing design for a direct, leak-free fit.

Technical Details

• Operating mode: Electric

• Transmission type: 5-speed manual

• Number of pins: 2

• Thread size: M20 x 1.5

• Spanner size: 24mm

Gearbox Compatibility

VW T5 – 5 Speed Manual

Gearbox Codes:
GUB, GTW, GTZ, JQU, LRS, FJK, FJH, FJM, GMS, QWN, QWM, QWL, PCB, PCA, MQT, MQS, MAG, JVQ

VW T6 – 5 Speed Manual

• All 5-speed manual gearbox variants

VW Golf Mk4 – 5 Speed Manual

Gearbox Codes:
DUU, DUS, DUW, ERT, EGS, EUH, EGU, EVS, EGY, EHA, EGR, FBK, EWK, EWN, FML, FZQ, ERF

Vehicle Fitment Summary

Volkswagen Golf Mk3

1993–1998 – Petrol & Diesel (Manual)

• 1.6, 1.8, 2.0 Petrol

• 1.9 Diesel

• Hatchback & Cabriolet

Volkswagen Golf Mk4

1997–2006 – Petrol & Diesel (Manual)

• 1.4, 1.6, 1.8, 2.0, 2.3 Petrol

• 1.9 Diesel

• Hatchback, Estate, Cabriolet & Van variants

Volkswagen Transporter T5

2003–2015 – Manual Transmission

• 1.9 Diesel

• 2.0 Petrol

• Bus, Van & Platform/Chassis

Volkswagen Transporter T6

2015–2019 – Manual Transmission

• 2.0 Diesel

• Bus, Van & Platform/Chassis

Compatibility Notes

• Manual transmissions only

• 5-speed gearboxes

• Not suitable for automatic or DSG transmissions

• Always confirm gearbox code if unsure
