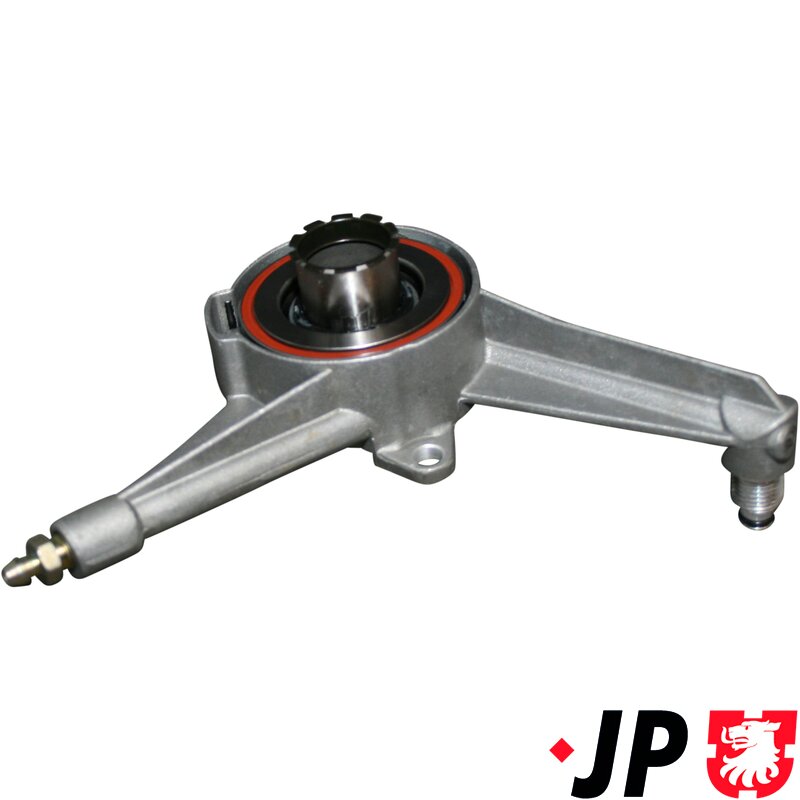

T4,G4 Clutch Release Bearing - 2.5 TDI + VR6 (ACV,AHY,AUF,AYC,AXG,AYY,AES)

This hydraulic release bearing, also known as a concentric slave cylinder (CSC), is designed for VW T4 Transporter models fitted with 2.5 TDI and 2.8 VR6 engines from 1996 to 2003. Unlike traditional clutch setups that use a fork and external slave cylinder, this unit sits inside the bellhousing, mounted directly around the gearbox input shaft.

When the clutch pedal is pressed, hydraulic pressure from the clutch master cylinder acts directly on the release bearing. This provides smooth, even pressure to the clutch pressure plate, improving pedal feel and reducing mechanical wear. Because it operates inside the gearbox bellhousing, any failure requires gearbox removal, making replacement during clutch work absolutely essential.

What this part does

• Combines the clutch slave cylinder and release bearing into one unit

• Applies hydraulic pressure directly to the clutch pressure plate

• Eliminates the need for a clutch fork, pivot, and guide sleeve

• Ensures smooth, consistent clutch operation and pedal feel

Common symptoms of failure

• Clutch pedal sinking or failing to return

• Difficulty engaging gears

• Hydraulic fluid loss from the bellhousing

• Clutch slipping or incomplete disengagement

Fitting notes & recommendations

• Strongly recommended when replacing the clutch

• Gearbox must be removed to replace this part

• Always bleed the clutch hydraulic system thoroughly after installation

• Inspect the clutch master cylinder and hydraulic line for leaks

• Only suitable for vehicles originally equipped with a hydraulic release bearing

Vehicle Fitment Summary

VW Transporter / Caravelle / Multivan / California – T4

Model years: 1996–2003
Transmission: Manual (hydraulic clutch system)

Engine fitment:

• 2.5 TDI: ACV, AJT, AUF, APL, AXG, AYC (1995–2003, model dependent)

• 2.8 VR6 Petrol: AES (1996–2000)

(Applies to Bus, Van, and Platform/Chassis body styles as originally fitted)
