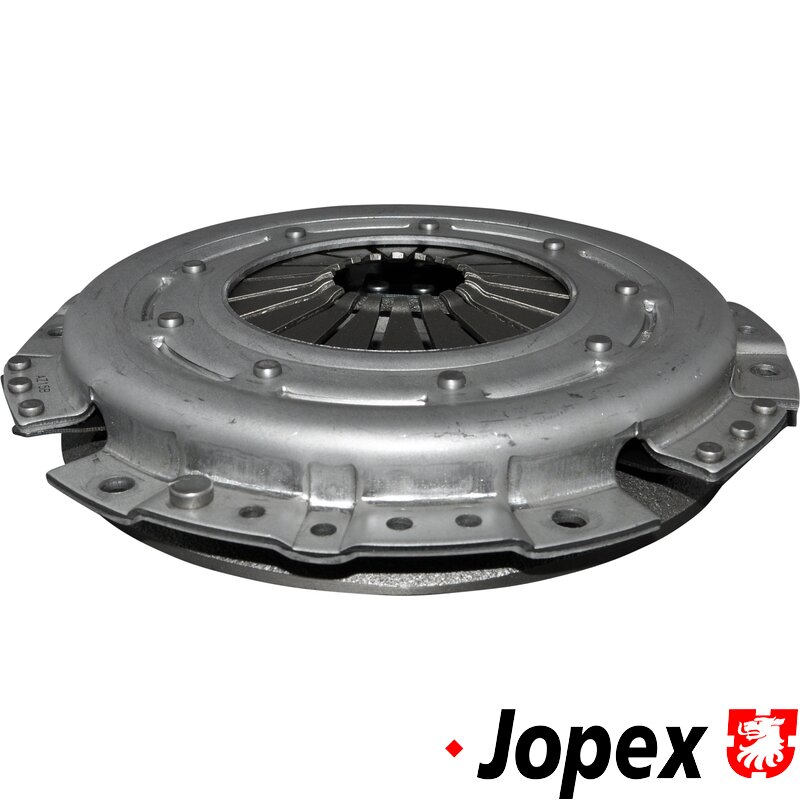

228mm Clutch Pressure Plate - Type 4 Engines, Pre 1989 Waterboxer Engines
Part Number: 029141025B
Replacement 228mm clutch pressure plate for late Type 4 aircooled engines and early Waterboxer-powered Type 25 / T3 buses. Designed to provide reliable clamping force, smooth engagement, and dependable drive in both stock and lightly uprated engines.
This pressure plate is commonly used on 2000cc aircooled Type 4 engines and 1900cc / 2100cc Waterboxer engines up to April 1989. Ideal for clutch overhauls where the original unit is worn, slipping, or suffering from judder.
Important: Some early Waterboxer engines were fitted with 215mm clutches. Always check clutch diameter before ordering.
Key Features
228mm clutch pressure plate
Smooth, progressive engagement
Suitable for aircooled and early watercooled applications
Direct replacement for original specification units
Ideal for restoration or maintenance work
Engine & Chassis Notes
1900cc Waterboxer – up to chassis number 24…K111535 (May)
2100cc Waterboxer – up to chassis number 24…K097046 (April)
Vehicle Applications
VW Baywindow Bus – 2000cc Type 4 aircooled engines (1973–1979)
VW Type 25 / T3 – 1900cc & 2100cc Waterboxer engines (1979–1989)
This Part Fits: Baywindow, Type 25,
Availability: Special Order Item
Item Name: Clutch pressure plate, 228 mm, new
Description: Clutch Pressure Plate
Product Group: Transmissi
Group: Clutch
Unit of Measure: Each
Manufacturer: JOPEX
Dimensions:
Width: 290mm
Height: 290mm
Depth: 95mm
Volume: 7989500mm3
Weight: 5.374kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/82 - 08/82 | 1,9 | Petrol | Bus | 60 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 09/82 - 09/82 | 1,9 | Petrol | Platform/Chassis | 60 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 10/82 - 10/82 | 1,9 | Petrol | Van | 60 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 05/79 - 05/79 | 2,0 | Petrol | Platform/Chassis | 69 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 05/79 - 05/79 | 2,0 | Petrol | Van | 69 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 05/79 - 05/79 | 2,0 | Petrol | Bus | 70 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/82 - 08/82 | 1,9 | Petrol | Platform/Chassis | 78 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/82 - 08/82 | 1,9 | Petrol | Bus | 78 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 10/82 - 10/82 | 1,9 | Petrol | Van | 78 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 11/84 - 11/84 | 1,9 | Petrol | Van | 78 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 12/84 - 12/84 | 1,9 | Petrol | Platform/Chassis | 78 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 02/85 - 02/85 | 1,9 | Petrol | Bus | 78 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 01/83 - 01/83 | 1,9 | Petrol | Bus | 83 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 10/86 - 10/86 | 2,1 | Petrol | Bus | 87 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 10/86 - 10/86 | 2,1 | Petrol | Bus | 87 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/83 - 08/83 | 1,9 | Petrol | Bus | 90 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/83 - 08/83 | 1,9 | Petrol | Van | 90 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 07/89 - 07/89 | 2,1 | Petrol | Van | 92 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 07/89 - 07/89 | 2,1 | Petrol | Bus | 92 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 07/89 - 07/89 | 2,1 | Petrol | Platform/Chassis | 92 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/85 - 08/85 | 2,1 | Petrol | Van | 95 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/85 - 08/85 | 2,1 | Petrol | Platform/Chassis | 95 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/85 - 08/85 | 2,1 | Petrol | Van | 95 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/85 - 08/85 | 2,1 | Petrol | Platform/Chassis | 95 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/85 - 08/85 | 2,1 | Petrol | Bus | 95 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/85 - 08/85 | 2,1 | Petrol | Bus | 95 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 06/89 - 06/89 | 2,1 | Petrol | Bus | 95 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 08/84 - 08/84 | 2,1 | Petrol | Bus | 112 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 01/86 - 01/86 | 2,1 | Petrol | Bus | 112 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 03/86 - 03/86 | 2,1 | Petrol | Van | 112 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 03/86 - 03/86 | 2,1 | Petrol | Platform/Chassis | 112 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 03/86 - 03/86 | 2,1 | Petrol | Van | 112 | - | -
|
| VW | Bus/Transporter/Flatbed | T3 (T25) | 03/86 - 03/86 | 2,1 | Petrol | Platform/Chassis | 112 | - | -
|
| VW | LT | LT I | 11/75 - 11/75 | 2,7 | Diesel | Platform/Chassis | 65 | - | -
|
| VW | LT | LT I | 11/75 - 11/75 | 2,7 | Diesel | Van | 65 | - | -
|
| VW Classic | Transporter | T2 | 08/76 - 08/76 | 2,0 | Petrol | Van | 69 | - | -
|
| VW Classic | Transporter | T2 | 08/75 - 08/75 | 2,0 | Petrol | Bus | 70 | - | Engine Code CJ;GD;GE |
| Manufacturer | Ref. No. |
|---|---|
| SACHS | 3082086434 |
| VW | 025141025 |
| VW | 025141025A |
| VW | 025141025D |
| VW | 025141025E |
| VW | 029141025 |
| VW | 029141025A |
| VW | 029141025B |
| VW | 029141025C |
| JPGROUP | 141049001 |
| EMPI | 321262B |
| EMPI | 32-1262-B |
