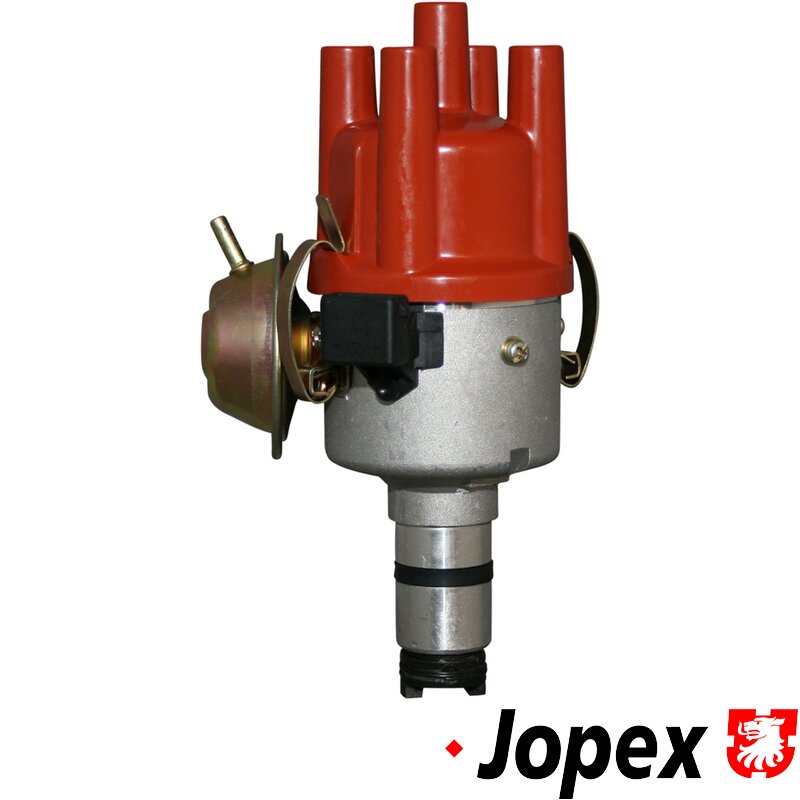

Type 25 Distributor - 1900cc Waterboxer (DF Engine Codes)

This vacuum advance distributor is the correct ignition distributor for Volkswagen Type 25 / T3 buses fitted with the 1900cc DF Waterboxer engine. Designed to match the original DF ignition specification, it provides the correct vacuum advance curve and sender configuration required for smooth running, good throttle response and reliable ignition timing.

On DF engines, the distributor works with both mechanical and vacuum advance to adjust ignition timing based on engine speed and load. Under light throttle and cruising conditions, the vacuum advance improves efficiency and drivability, while mechanical advance handles higher engine speeds. Using the correct DF-specific distributor is essential, as the ignition characteristics differ from other Waterboxer variants.

This unit is a direct replacement for the original DF distributor used from mid-1984 onward and is suitable for routine maintenance, fault diagnosis, or full ignition system refresh.

How it works

The distributor is driven by the camshaft and distributes high-voltage spark to each cylinder in the correct firing order. The vacuum advance unit reacts to intake manifold vacuum, advancing the ignition timing during low-load conditions to improve combustion efficiency, reduce fuel consumption, and enhance part-throttle performance.

Important fitting notes

• For DF engine codes only

• Not suitable for DG engines due to different sender connections and ignition advance characteristics

• Ignition timing must be set correctly after installation

Fitment

• Engine code: DF – 1900cc Waterboxer

• Production dates: 06/1984 – 07/1992

• Chassis number: From F24-E-155 001 onwards

Applications

• VW Transporter T3 – 1.9 DF Waterboxer (06/1984–07/1992)

Technical Details

• Distributor Type: Vacuum advance

• Ignition Control: Mechanical + vacuum advance

• Engine Compatibility: DF only

May also be required (sold separately)

• Vacuum hose
