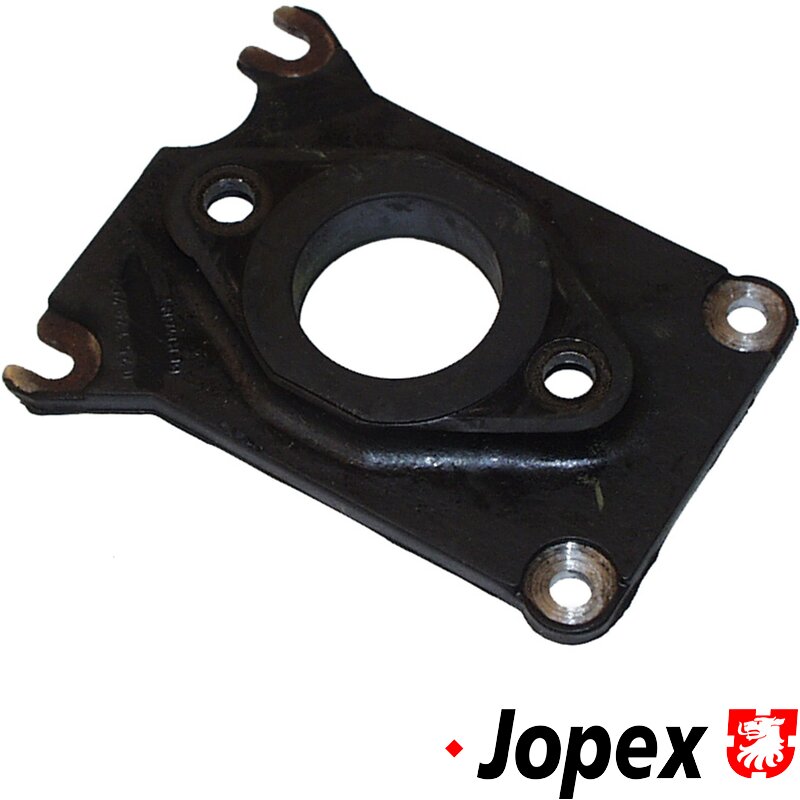

34 PICT 5 Carburettor Base Gasket - 1900cc Waterboxer (DF, EY Engine Codes)

This rubber carburettor base flange gasket is fitted between the carburettor and the inlet manifold on Volkswagen Type 25 / T3 buses equipped with 1900cc Waterboxer carburettor engines. It is designed specifically for engines using the Solex 34 PICT-5 carburettor and certain early DG engines fitted with a single-choke 34mm Solex carburettor.

The base flange plays a critical role in sealing the carburettor to the manifold while also providing a degree of vibration isolation and heat insulation. Over time, exposure to engine heat, fuel vapour, and constant vibration can cause the original rubber flange to harden, crack, or deform. When this happens, vacuum leaks can occur, leading to rough idle, hesitation, poor fuel economy, and erratic running.

Manufactured as a good quality replacement, this flange restores the correct factory sealing surface and ensures the carburettor is securely mounted and correctly aligned.

How it works

The flange creates an airtight seal between the carburettor and the inlet manifold, ensuring all intake air passes through the carburettor as intended. Its rubber construction also helps absorb engine vibration and reduce heat transfer into the carburettor, improving drivability and longevity.

Fitment & installation notes

• Fits between carburettor and inlet manifold

• Suitable for 1900cc Waterboxer carburettor engines

• Correct for Solex 34 PICT-5 carburettors

• Direct replacement with factory-style fit

• Recommended to check mounting studs, nuts, and carburettor condition during installation

Replacing the base flange is a common and effective fix when diagnosing vacuum leaks, unstable idle, or poor running on carburetted Waterboxer engines.

Engine compatibility

• DF 1.9 Waterboxer – fitted with Solex 34 PICT-5

• EY 1.9 Waterboxer – fitted with Solex 34 PICT-5

• DG 1.9 Waterboxer – early engines with single-choke 34mm Solex carburettor
