Type 25 Metal Water Pipe - Water Pump To Right Cylinder Head - 1983-85 - 1900cc Waterboxer Engines

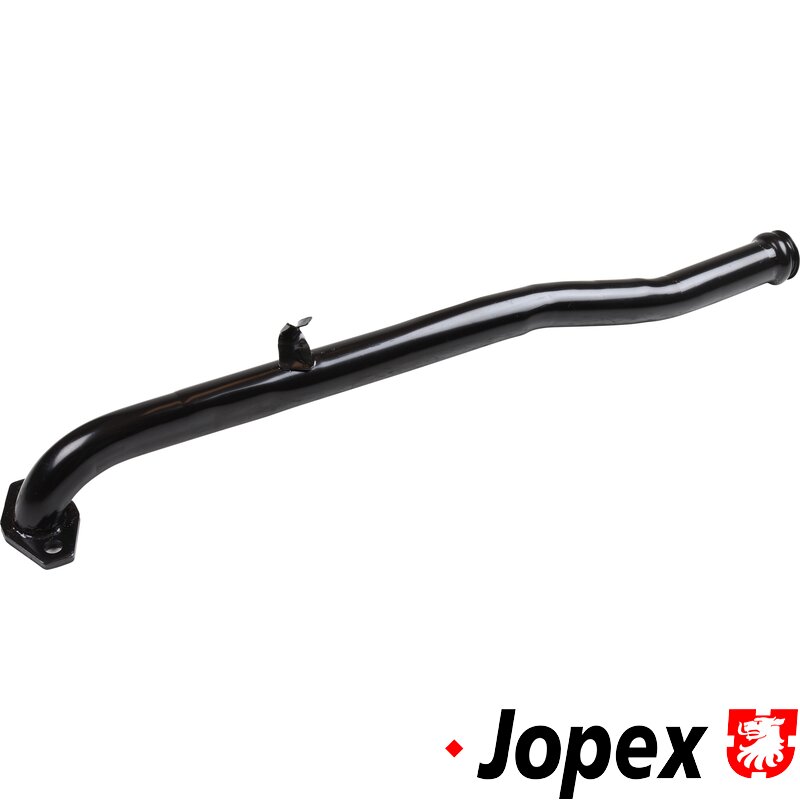

This steel coolant pipe is a direct replacement for the factory pipe fitted to early 1.9 Waterboxer engines in VW Type 25 (T25 / T3) vans built between 1982 and 1985. It runs from the thermostat housing to the right-hand (driver’s side on RHD models) cylinder head and plays a critical role in regulating coolant flow as the engine warms up.

As the thermostat opens, coolant is directed through this pipe into the right cylinder head, ensuring even temperature control and preventing localised overheating. Because this pipe sits low in the cooling system and is constantly exposed to heat cycles, moisture, and road contamination, original pipes often suffer from internal corrosion, thinning walls, and eventual leaks.

Manufactured from steel and formed to original factory dimensions, this replacement pipe provides a precise bolt-on fit and restores correct coolant routing. It is ideal for engines undergoing cooling system refurbishment, thermostat replacement, or preventative maintenance on early Waterboxer vans.

How it works

When the engine reaches operating temperature, the thermostat opens and allows coolant to flow through this pipe into the right cylinder head. This controlled flow helps stabilise combustion temperatures and ensures the cooling system responds correctly to engine load and temperature changes.

Fitment & installation notes

• Fits right-hand cylinder head (RHD driver’s side)

• For 1.9 WBX engines only (early cooling system layout)

• Direct replacement with original routing and connections

• Sealing gasket and O-ring must be replaced when fitting to ensure a leak-free installation

Required fitting parts:

• Sealing O-ring – Part number: N0282252

• Coolant pipe gasket – Part number: N90168502

Replacing these seals at the same time is essential, as hardened or flattened originals are a common cause of persistent coolant leaks.

Engine compatibility

• DF 1.9 (08/82–07/85)

• DG 1.9 (08/82–07/85)

• DH 1.9 (01/83–07/85)

• EY 1.9 (10/84–07/85)

• GW 1.9 (08/83–07/85)
