Type 25 Metal Water Pipe - Water Pump To Right Cylinder Head (Elbow) - 1983-92

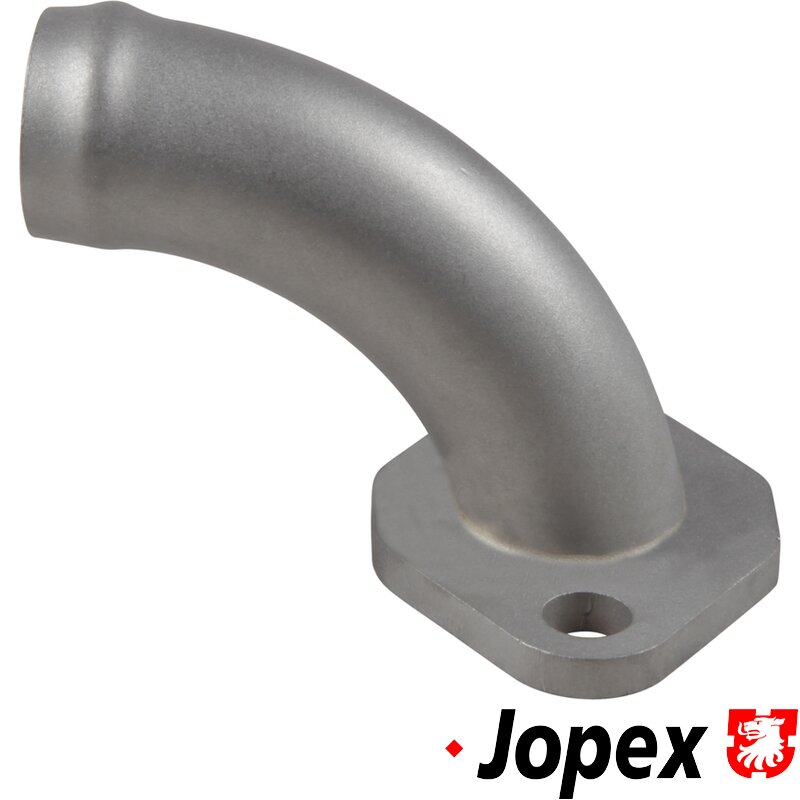

This stainless steel coolant pipe elbow is a premium replacement for the original steel or plastic elbow fitted to the right-hand side of the engine block (driver’s side on RHD models) on VW Type 25 (T25) Waterboxer engines. It bolts directly to the engine block and routes coolant toward the water pump, forming a crucial link in the engine’s primary coolant circulation path.

As coolant leaves the engine block, this elbow channels flow efficiently into the water pump, allowing coolant to be circulated through the engine, radiator, and thermostat system. Because it operates at a low point in the cooling circuit and is exposed to heat, moisture, and road grime, the original pipe is prone to corrosion, pitting, and eventual leaks. Failure at this point can result in rapid coolant loss and overheating.

Manufactured from high-grade stainless steel, this elbow offers excellent resistance to rust and corrosion while maintaining structural integrity under heat and pressure. Precision-formed to original specifications, it ensures a correct bolt-on fit with factory hoses and pipework, making it an ideal long-term upgrade or replacement during cooling system maintenance or engine rebuilds.

How it works

Coolant exits the right side of the engine block and flows through this elbow directly into the water pump. From there, it is circulated throughout the cooling system to regulate engine temperature. A secure, leak-free seal at this junction is essential to maintain system pressure and reliable coolant flow.

Fitment & installation notes

• Fits right-hand side of engine block (RHD driver’s side)

• Suitable for 1.9 and 2.1 petrol Waterboxer engines

• Compatible with Syncro and non-Syncro models

• Direct replacement with no modification required

• Gasket not included – always replace the gasket during installation

Recommended fitting part:

• Coolant pipe sealing gasket – Part number: N90168502

This stainless steel elbow removes a common corrosion-prone component from the Waterboxer cooling system and is highly recommended for reliability-focused restorations or regularly driven vans.

Engine compatibility

2WD models:

• DF 1.9 (08/82–07/92)

• DG 1.9 (08/82–07/92)

• DH 1.9 (01/83–07/85)

• EY 1.9 (10/84–07/89)

• GW 1.9 (08/83–07/85)

• DJ 2.1 (08/84–07/92)

• MV 2.1 (08/85–07/92)

• SP 1.9 (08/86–07/89)

• SR 2.1 (08/86–07/92)

Syncro models (from chassis F24-G-000 001>):

• DG 1.9 (08/85–07/92)

• SP 1.9 (08/86–07/89)

• DJ 2.1 (08/85–07/92)

• MV 2.1 (08/85–07/92)

• SR 2.1 (08/85–07/89)

• SS 2.1 (08/85–07/92)
