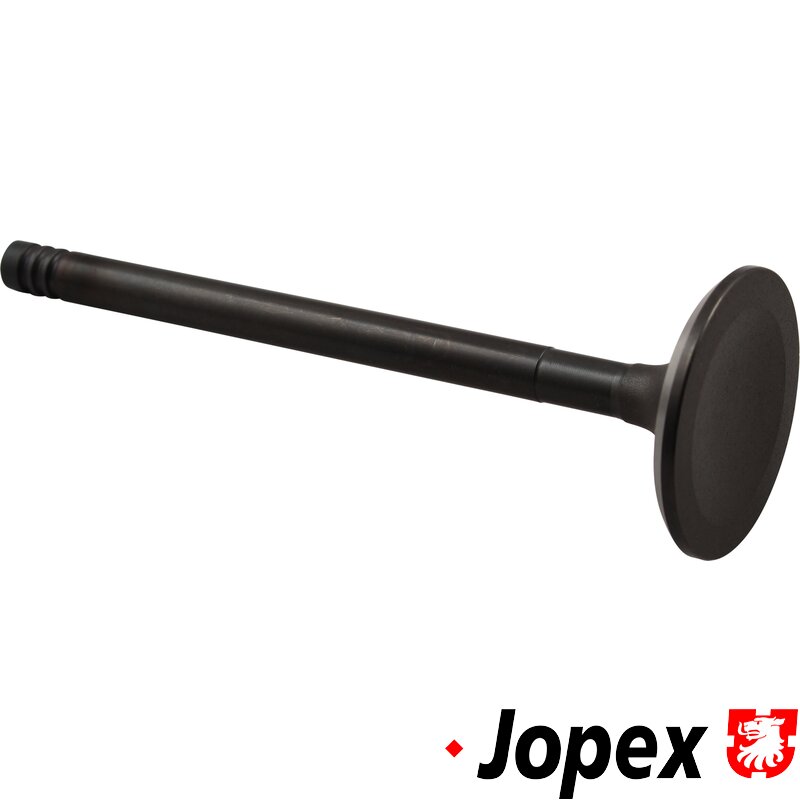

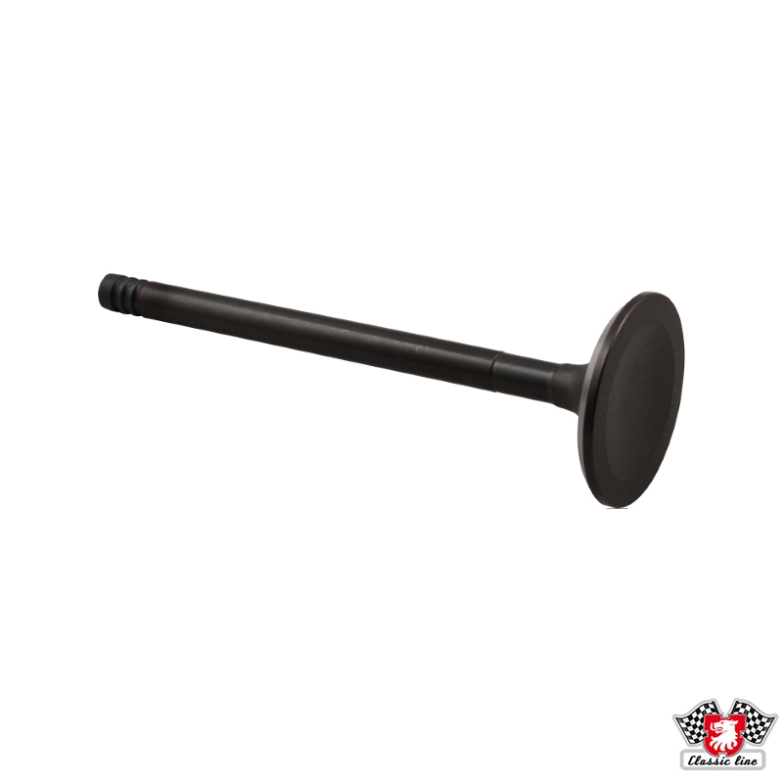

40mm X 8mm Valve - Waterboxer Inlet Valve (Not DF or EY)

This replacement inlet valve is designed for VW Type 25 / T3 buses fitted with 1900cc and 2100cc Waterboxer (WBX) petrol engines using the larger 40mm inlet valve specification. Manufactured to exacting standards by IVAM (Italy), it is a high-quality OE-style replacement ideal for engine rebuilds, cylinder head refurbishment, or replacing worn or damaged valves.

The inlet valve controls the flow of the air/fuel mixture into the combustion chamber. Correct valve diameter, stem size, and length are critical to ensure proper sealing, airflow, and valve train geometry. This valve features a 40mm head to support the higher-flow WBX heads and an 8mm stem with the correct 122.46mm stem length and 3-groove keeper configuration, ensuring compatibility with the specified Waterboxer cylinder heads.

Precision manufacturing and quality materials help provide consistent seating, excellent heat resistance, and long service life—key factors for reliable operation in heavier vehicles like the T25/T3.

Important Fitment Note:
This will NOT fit DF or EY engines, which use smaller 35.5mm inlet valves. Always confirm engine code and valve size before ordering.

Specifications

• Valve head diameter: 40mm

• Stem diameter: 8mm

• Stem length: 122.46mm

• Keeper grooves: 3

• Quantity: Sold individually (4 required per engine)

Engine Compatibility (Watercooled WBX)

Fits the following engine codes and production periods:

• DG – 1.9 (08/82 – 07/92)

• DH – 1.9 (1983 – 1985)

• GW – 1.9 (1983 – 1985)

• SP – 1.9 (1986 – 1989)

• DJ – 2.1 (08/84 – 07/92)

• MV – 2.1 (1985 – 1992)

• SR – 2.1 (1986 – 1992)

• SS – 2.1 (1989 – 1992)

Not suitable for: DF, EY (35.5mm inlet valve heads)

Vehicle Applications

• VW Type 25 / T3 Bus: 1982 – 1992
  (1.9 & 2.1 Waterboxer petrol engines as listed above)

Fitting & Related Parts

• Replace all inlet valves (x4) as a set for best results

• Inspect/renew valve guides, seats, and valve stem seals during installation

• Always check installed height and seat contact pattern

• Follow proper bedding-in procedures after rebuild
