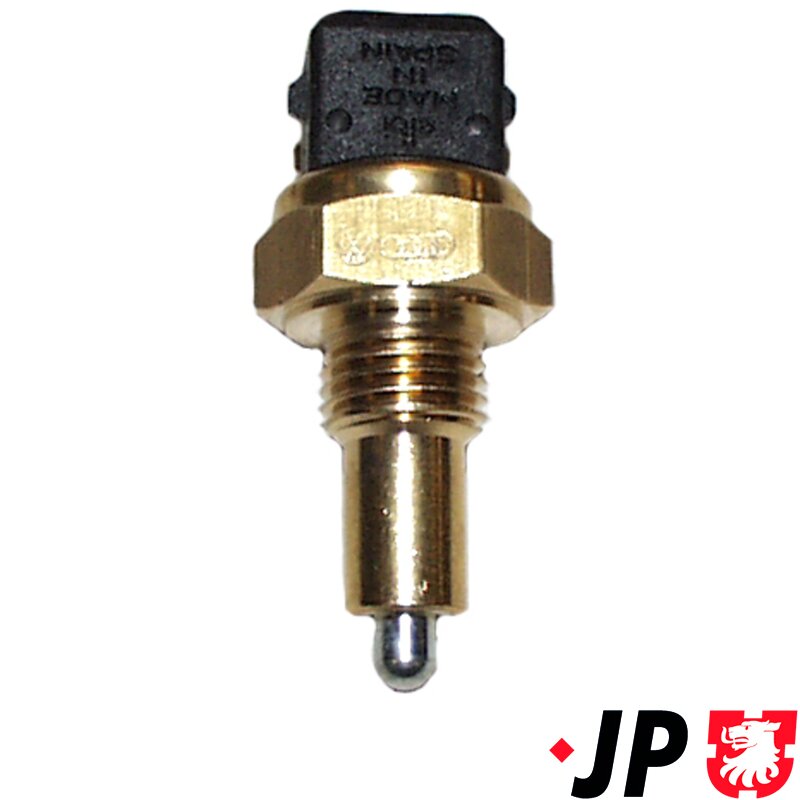

B5 Passat Reversing Light Switch - 1996-05

This reversing light switch is a direct replacement for all VW Passat B5 and B5.5 models from the start of production in August 1996 through chassis number 3B-1-450 000 in 2005. Designed as a mechanical switch, it activates the reverse lights automatically when the gearbox is shifted into reverse.

Located on the gearbox casing, this component completes the circuit to power your rear lights for reversing, offering both safety and visibility. A failed switch can result in non-functional reverse lights, which is both a MOT failure and a safety issue.

This OEM-style switch restores full reverse light function and fits perfectly without modification. It`s also a great preventative replacement when servicing the gearbox.

Specifications:

• Type: Mechanical contact switch

• Mounting: Screws into gearbox housing

• Function: Closes circuit to rear reverse lamps when in reverse gear

• Chassis Compatibility: Up to 3B-1-450 000

• Connection Type: Standard 2-pin plug

Function and Benefits:

• Automatically triggers reversing lights when gear is engaged

• Ensures safe reversing by alerting others

• Simple plug-and-play replacement

• Maintains roadworthiness and legal compliance

• Ideal during gearbox servicing or troubleshooting light faults

Compatibility:

• VW Passat B5 (1996–2000)

• VW Passat B5.5 (Facelift, 2000–2005)
  Valid up to chassis number 3B-1-450 000

🔧 Note: Always confirm your vehicle’s chassis number before ordering. This switch only applies up to the specified VIN range.
