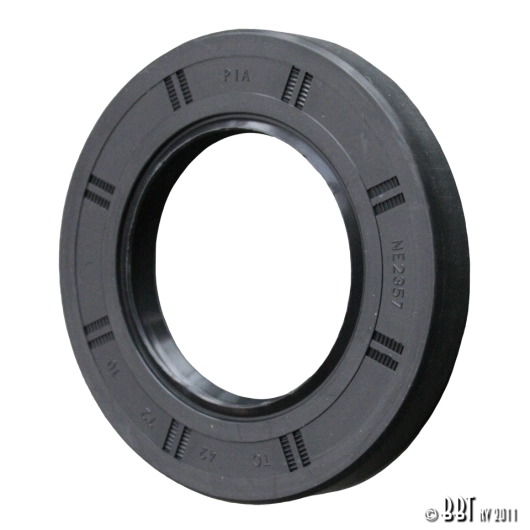

Baywindow Bus Gearbox Drive Flange Seal - 1968 ONLY

This replacement gearbox drive flange output seal is designed specifically for early 1968 VW Baywindow Buses. It sits behind the driveshaft output flange on each side of the gearbox and prevents transmission oil from leaking past the output shafts.

Manufactured to precise dimensions, this 42mm ID x 72mm OD x 10mm thick seal ensures a perfect fit and long-lasting protection against oil leaks. Constructed from high-quality, oil- and heat-resistant rubber, it delivers reliable sealing performance under normal gearbox operating conditions.

Each gearbox requires two seals, one per side, and they are sold individually. If your gearbox has been updated or replaced with a later unit, please see part number 002301189C for the later-style seal.

Replacing these seals is highly recommended when rebuilding your gearbox, replacing drive flanges, or servicing leaking outputs. Proper sealing helps maintain gearbox oil levels, ensuring smoother operation and longer component life.

Features:

• High-quality reproduction of the original early Baywindow gearbox seal

• Prevents gearbox oil leaks from the drive flange area

• Precision fit for 1968-only gearboxes

• Durable rubber compound resistant to oil and heat

• Easy to install during gearbox service or rebuild

Applications:

• VW Baywindow Bus: 1968 only

Fitment Details:

• Location: Gearbox drive flange (left and right)

• Quantity required: 2 per gearbox

• Measurements: 42mm inner diameter, 72mm outer diameter, 10mm thick

• For 1968 models only – see 002301189C for later gearboxes

Quality:

• Good quality reproduction part

• Manufactured to OEM specifications
