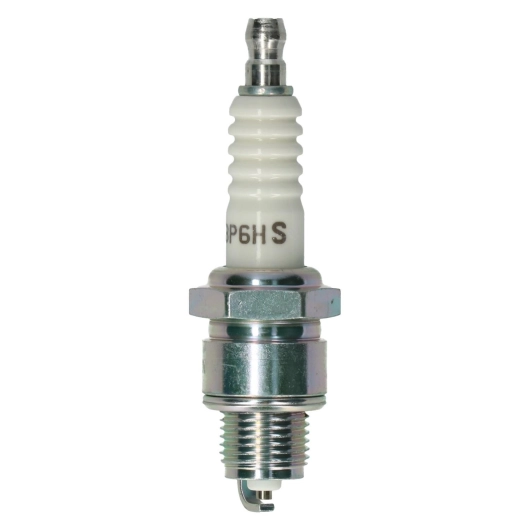

NGK BP6HS Spark Plug - 14mm Thread (Short Reach)

The NGK BP6HS is a short-reach spark plug ideally suited to standard or mildly tuned air-cooled Volkswagen engines fitted with cylinder heads that use a 12.7mm (½ inch) thread reach. This includes many stock Type 1 Beetle, Karmann Ghia, and early Type 2 and Type 3 engines, as well as numerous vintage and replacement cylinder heads.

With a medium-cold heat range (6), the BP6HS provides excellent protection against overheating while still ensuring reliable ignition under everyday driving and spirited use. The projected insulator design (P) improves combustion by placing the spark deeper into the chamber for efficient flame spread, better fuel burn, and smoother throttle response.

Built with NGK’s proven solid copper-core electrode, the BP6HS guarantees consistent spark energy, superb heat transfer, and long-term reliability. It’s the ideal choice for daily-driven and performance-upgraded air-cooled VWs where short-reach plugs are required.

Key Features:

• Genuine NGK BP6HS short-reach spark plug
• Designed for standard or mildly tuned VW air-cooled engines
• Medium-cold heat range (6) for efficient temperature control
• Projected insulator (P) for improved ignition and combustion efficiency
• Copper-core electrode for dependable spark and longevity
• 14 mm × 1.25 thread, 12.7 mm reach, 21 mm spanner size
• M4 terminal type for standard ignition lead fitment
• Sold each – 4 required per engine

Applications:

• VW Beetle 1200 – 1600 (standard and twin-port engines)
• VW Karmann Ghia 1200 – 1600
• VW Type 2 (Splitscreen and early Baywindow) air-cooled engines
• VW Type 3 Notchback, Squareback and Fastback air-cooled engines
• Ideal for stock or mild performance heads requiring short-reach plugs

NGK Code Explained:

• B – 14 mm thread diameter
• P – Projected insulator type
• 6 – Medium-cold heat range (2 = hot, 10 = cold)
• H – 12.7 mm (½ inch) thread reach (short reach)
• S – Standard design features

Specification:

• Thread size: M14 × 1.25
• Thread reach: 12.7 mm
• Spanner size: 21 mm
• Terminal type: M4
• Electrode core: Copper
• Quantity: Sold each
